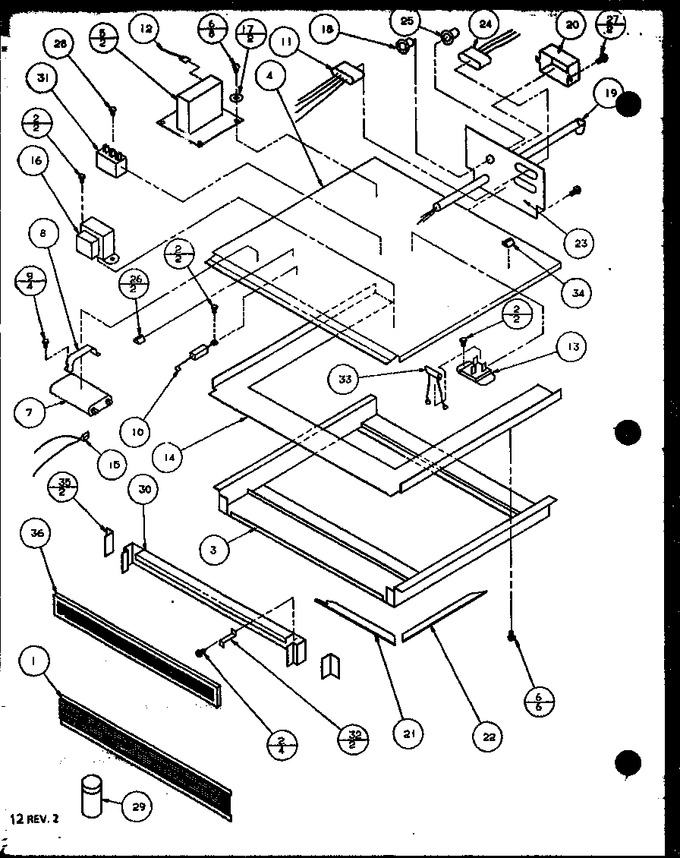

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8708502		Grille Air Inlet		Appelez-nous	-
2	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
3	D7732802		Basepan Weld		Appelez-nous	-
4	D7573603		Chassis		Appelez-nous	-
5	D7686908		Kit, Hv Transformer		Appelez-nous	-
6	M0253543		Screw K		Appelez-nous	-
7	D8547927		Capacitor-.69		Appelez-nous	-
8	A4055405		Strap, Capacitor		Appelez-nous	-
9	M0216517		Screw		Appelez-nous	-
10	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
11	B8393101		Wire Assy		Appelez-nous	-
12	D7717030		Wire Jumper		Appelez-nous	-
12	D7365136		Jumper Wire		Appelez-nous	-
13	D7681501		Triac				$ 44.05
14	C8775302		Oven Mtg Plate		Appelez-nous	-
15	D7365139		Wire Jumper		Appelez-nous	-
16	C8901502		Transformer, Auto		Appelez-nous	-
17	M0272805		Lock Washer		Appelez-nous	-
18	A3293501		Bushing		Appelez-nous	-
19	B5731701		Kit,cord		Appelez-nous	-
20	B8334701		Can, Capacitor		Appelez-nous	-
21	C8870702		Gasket, Base Pan		Appelez-nous	-
22	C8870703		Gasket, Base Pan		Appelez-nous	-
23	C8988802		Strain Releif		Appelez-nous	-
24	B8393001		Wire Assy		Appelez-nous	-
25	M0370007		Strain Relief		Appelez-nous	-
26	M0104102		Clip, Cord				$ 8.10
27	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
28	M0234117		Screw		Appelez-nous	-
29	A3204901		Thermal Compound K		Appelez-nous	-
30	C8890002		Ass`y, Air Inlet		Appelez-nous	-
31	B5677203		Terminal Block		Appelez-nous	-
32	B8364201		Spring		Appelez-nous	-
33	10172902		Snubber Assembly		Appelez-nous	-
34	M0104104		Clip, Cord		Appelez-nous	-
35	B8392501		Guide, Filter		Appelez-nous	-
36	B5714801		Filter		Appelez-nous	-
