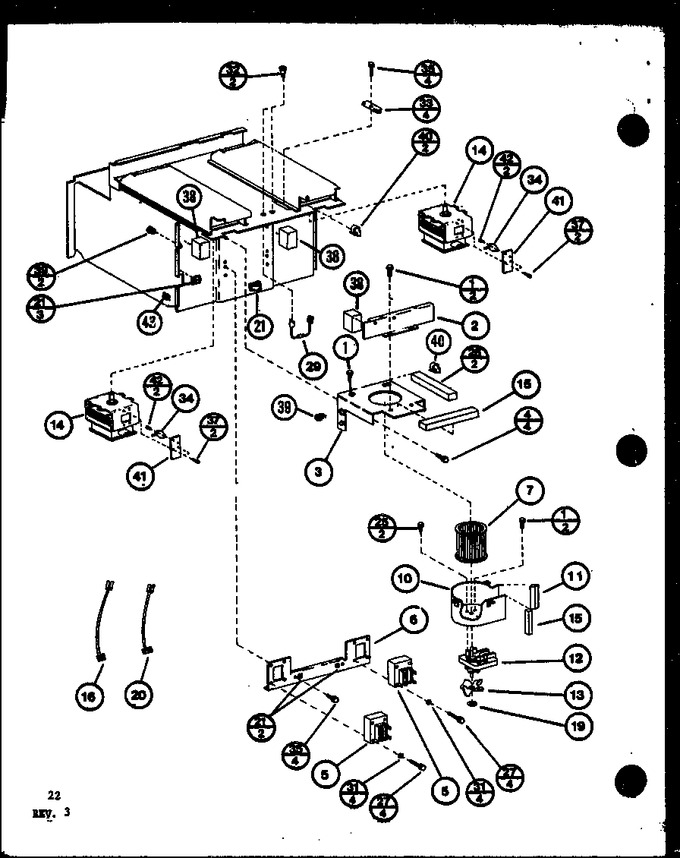

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
2	B5778001		End Plate		Appelez-nous	-
3	C8707803		Brkt. Blower Scroll		Appelez-nous	-
4	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
5	C8807807		Transformer, Filament		Appelez-nous	-
6	C8902001		Bracket Frame		Appelez-nous	-
7	C3670802		Wheel, Blower		Appelez-nous	-
10	C8710701		Wldmt-blower Scroll		Appelez-nous	-
11	A3030309		Gasket (per Foot)		Appelez-nous	-
12	C8811802		Kit, Motor		Appelez-nous	-
13	B5706702		Fan Blade-blower		Appelez-nous	-
14	C8835109		Magnetron		Appelez-nous	-
16	D7292624		Jumper Wire		Appelez-nous	-
19	M0118901		Clip		Appelez-nous	-
20	D7292682		Wire Jumper		Appelez-nous	-
21	M0104102		Clip, Cord				$ 8.10
25	WP3400094		Screw   (Replaces: M0258055)				$ 7.14
26	B8343705		Gasket		Appelez-nous	-
27	M0216522		Screw		Appelez-nous	-
29	B8353202		Thermal Fuse W/terminals		Appelez-nous	-
31	M0272802		Washer Lock		Appelez-nous	-
32	M0325401		Bushing,terminal		Appelez-nous	-
33	B5774402		Brkt-mag Tube		Appelez-nous	-
34	B5684109		Protector, Thermal		Appelez-nous	-
35	M0216531		Screw		Appelez-nous	-
37	M0229916		Screw T.c		Appelez-nous	-
38	B8343704		Gasket		Appelez-nous	-
40	M0118801		Clip		Appelez-nous	-
43	M0104104		Clip, Cord		Appelez-nous	-
