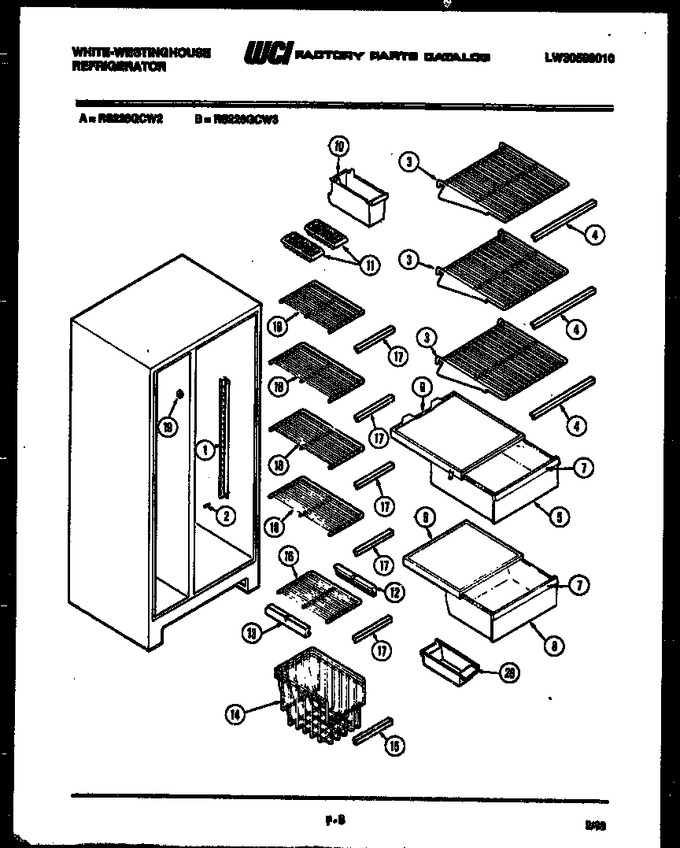

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G170694		Channel-rs And Ls		Appelez-nous	-
2	G166567		Screw-channel (8)		Appelez-nous	-
3	G180195-07		Shelf-refrigerator (4)		Appelez-nous	-
4	G187267-13		Trim-shelf (4)		Appelez-nous	-
5	G179709-01		Pan-upper		Appelez-nous	-
6	G169711-01		Cover-upper Pan		Appelez-nous	-
7	G177343-06		Trim-pan (2)		Appelez-nous	-
8	G179710-01		Pan-lower		Appelez-nous	-
9	G169724-01		Cover-lower Pan		Appelez-nous	-
10	G161015-13		Ice Container		Appelez-nous	-
11	G156376-01		Ice Tray		Appelez-nous	-
12	G168986		Hanger-basket Rs		Appelez-nous	-
13	G168987		Hanger-basket Ls		Appelez-nous	-
14	G184748		Basket-freezer		Appelez-nous	-
15	G165746-11		Trim-basket		Appelez-nous	-
16	G180425-04		Shelf-freezer (2)		Appelez-nous	-
17	3015092		Trim-shelf (5)		Appelez-nous	-
18	G180425-03		Shelf-freezer Ctr (3)		Appelez-nous	-
19	G167565		Grommet-shelf (10)		Appelez-nous	-
20	G173948-19		Egg Container		Appelez-nous	-
6A	G180108-03		Gasket-cover (2) (non-illustrated)		Appelez-nous	-
