02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts

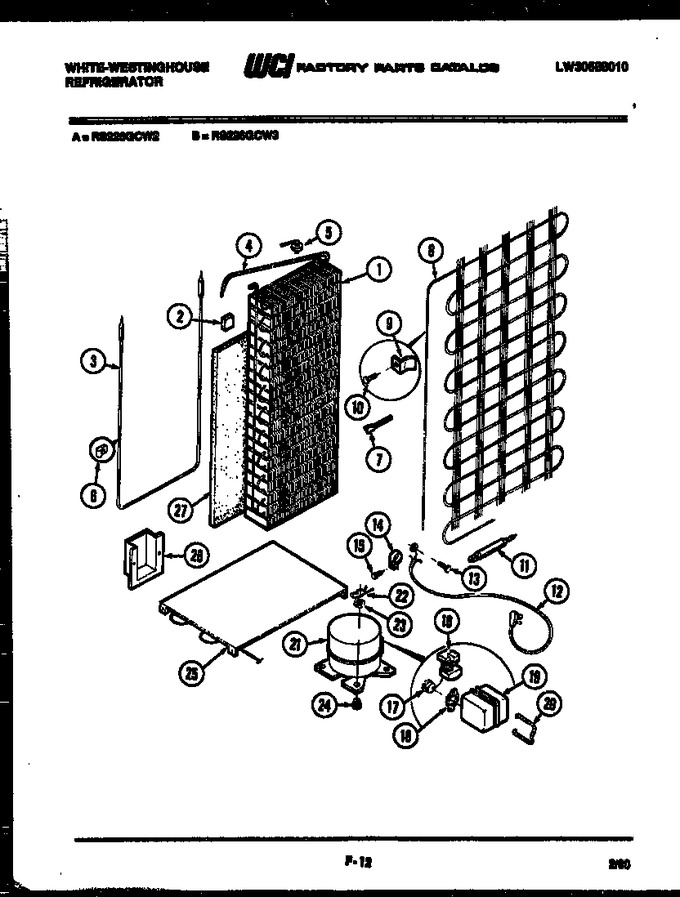

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G190222		Evaporator		Appelez-nous	-
2	G169493		Coil Block		Appelez-nous	-
3	G190223		Heater-defrost		Appelez-nous	-
4	G189609		Heat-exchanger		Appelez-nous	-
5	3007540		Thermostat-defrost		Appelez-nous	-
6	G167363		Support, Heater		Appelez-nous	-
7	G165546		Strap, Evaporator		Appelez-nous	-
8	G188597		Condenser		Appelez-nous	-
9	G169666-01		Bracket-mounting (4)		Appelez-nous	-
10	G160578		Screw		Appelez-nous	-
11	3007351		Drier		Appelez-nous	-
12	G162549-01		Service Cord		Appelez-nous	-
13	G160578		Screw		Appelez-nous	-
14	G27669		Clamp-cord		Appelez-nous	-
15	G160578		Screw		Appelez-nous	-
16	G182225-04		Relay		Appelez-nous	-
17	G188727		Overload		Appelez-nous	-
18	3007535		Clip-overload		Appelez-nous	-
19	3006411		Cover-terminal		Appelez-nous	-
20	G166057		Strap-cover		Appelez-nous	-
21	G189470		Compressor With Electricals		Appelez-nous	-
22	G163204		Clip-mounting (4)		Appelez-nous	-
23	G164634		Washer-mounting (4)		Appelez-nous	-
24	G177617		Grommet-mtg (4)		Appelez-nous	-
25	G188596		Defrost Plate		Appelez-nous	-
26	G183584		Cover, Wiring		Appelez-nous	-
27	G169641		Insulator-evaporator		Appelez-nous	-
*67747	R900979		Wiring Harness Compressor And Lights		Appelez-nous	-
*67747	G189379		Hot Tube Repair Kit		Appelez-nous	-
25A	G171111		Bracket-mounting (4) (non-illustrated)		Appelez-nous	-
25B	G171123		Bracket-dfr Pan Mtg (non-illustrated)		Appelez-nous	-
25C	G144049		Screw		Appelez-nous	-
