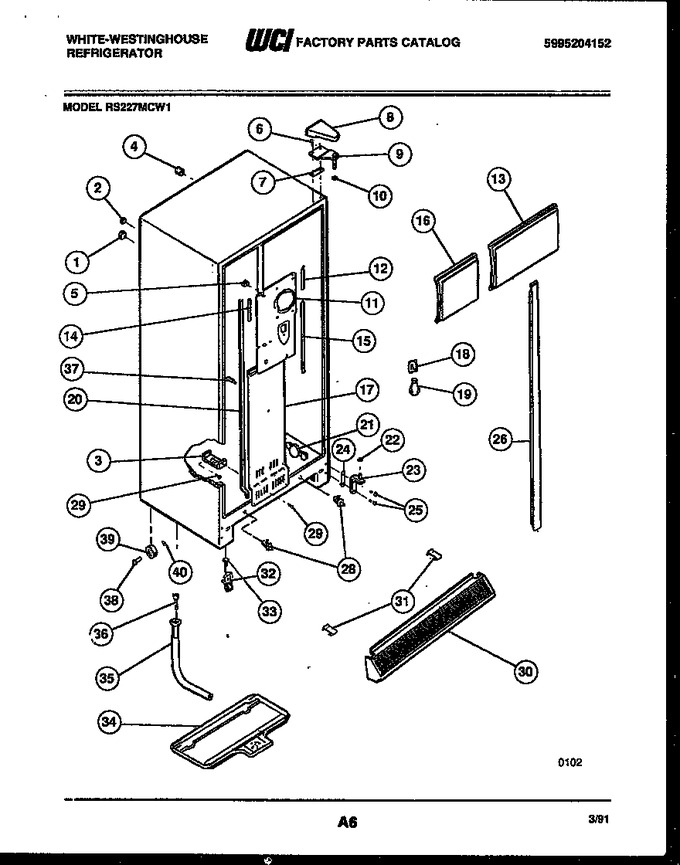

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001286		Ferrule-inner (2)		Appelez-nous	-
2	5303001287		Ferrule-outer (2)		Appelez-nous	-
3	5308000738		Bracket, Cover Mounting		Appelez-nous	-
4	5303001198		Tube-rubber (4)		Appelez-nous	-
5	5308000097		Support, Coil Cover (2)		Appelez-nous	-
6	241710601		Screw   (Replaces: 5303001479)				$ 13.46
7	5303001037		Shim-top Hinge (2)				$ 12.39
8	5303001665		Hinge Cover, Wheat		Appelez-nous	-
9	5308012934		Hinge Top, Rh		Appelez-nous	-
10	5308000186		Washer-hinge (2)			Immediately	$ 6.02
11	5303006543		Coil Cover, Upper		Appelez-nous	-
12	5303001219		Gasket-coil Cover (2)		Appelez-nous	-
13	5303271923		Light Shield-refrigerator		Appelez-nous	-
14	5303001233		Gasket-cover Lh		Appelez-nous	-
15	5303001233		Gasket-cover Rh		Appelez-nous	-
16	5303207094		Light Shield-freezer		Appelez-nous	-
17	5308000823		Coil Cover - Lower		Appelez-nous	-
18	218906802		Light Socket, Freezer   (Replaces: 5308000815)				$ 17.72
19	5303001179		Light Bulb-freezer		Appelez-nous	-
20	5303007420		Gasket-coil Cover		Appelez-nous	-
21	08017447		Damper-meat Keeper		Appelez-nous	-
22	5303001038		Washer Hinge (2)				$ 13.34
23	5303001271		Hinge, Bottom (2)				$ 102.38
24	5303001272		Shim-bottom Hinge (6)		Appelez-nous	-
25	5303001041		Screw-hinge Mounting (4)		Appelez-nous	-
26	3916446		Mullion, Wheat		Appelez-nous	-
28	5303208475		Light Switch (2)		Appelez-nous	-
29	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
30	5317154002		Grille		Appelez-nous	-
31	5308000847		Clip, Grille (2)				$ 5.39
32	5308000118		Roller-front (2)		Appelez-nous	-
33	5308017044		Screw-roller Mounting (2)				$ 6.34
34	5303001026		Defrost Pan		Appelez-nous	-
35	5303209723		Drain Outlet & Tube		Appelez-nous	-
36	5308000853		Heat Conductor		Appelez-nous	-
37	5303001250		Support-coil Cover (5)		Appelez-nous	-
38	5308000266		Pin, Roller (2)		Appelez-nous	-
39	5303001030		Roller, Rear (2)				$ 17.80
40	5303001028		Push Nut (2)		Appelez-nous	-
*42482	5303001230		Screw-bracket		Appelez-nous	-
*42482	5308012296		Plate-tapping (2)				$ 47.44
*42482	5308009617		Lock Washer (2)		Appelez-nous	-
*42482	5303001288		Plug-refrigerator Liner (2)		Appelez-nous	-
11A	08012270		Button-decorative Plug (non-illustrated)		Appelez-nous	-
11B	5303208309		Plug-short Test Hole (non-illustrated)				$ 45.50
13A	5303001213		Support-special Barrel (non-illustrated)		Appelez-nous	-
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
23A	5303001273		Twin Nut (4) (non-illustrated)		Appelez-nous	-
24A	5308000013		Shoulder Pin (2) (non-illustrated)		Appelez-nous	-
24B	5300077210		Speed Nut (2) (non-illustrated)		Appelez-nous	-
26A	5300169100		Clip - Mullion (3) (non-illustrated)		Appelez-nous	-
26A	5303001281		Clip-mullion (3) (non-illustrated)		Appelez-nous	-
9A	5303001062		Hinge - Top Lh (non-illustrated)				$ 117.02

    View Diagram in Separate Window       Print Part List
