Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 R0156972 Assy, Touch Panel Appelez-nous -
2 R0156975 Assy, Touch Pnl- Side Appelez-nous -
5 10172901Q Snubber Assembly Appelez-nous -
6 B5706704 Fan Blade Special Order $ 8.23

7 10773301 Motor- Blower Appelez-nous -
9 10797202 Weld, Scroll Appelez-nous -
10 C3670808 Wheel, Blower Appelez-nous -
11 10984001 Bracket, Blower Scroll Appelez-nous -
12 D7681501 Triac Special Order $ 44.05


    View Diagram in Separate Window     Print Icon   Print Part List

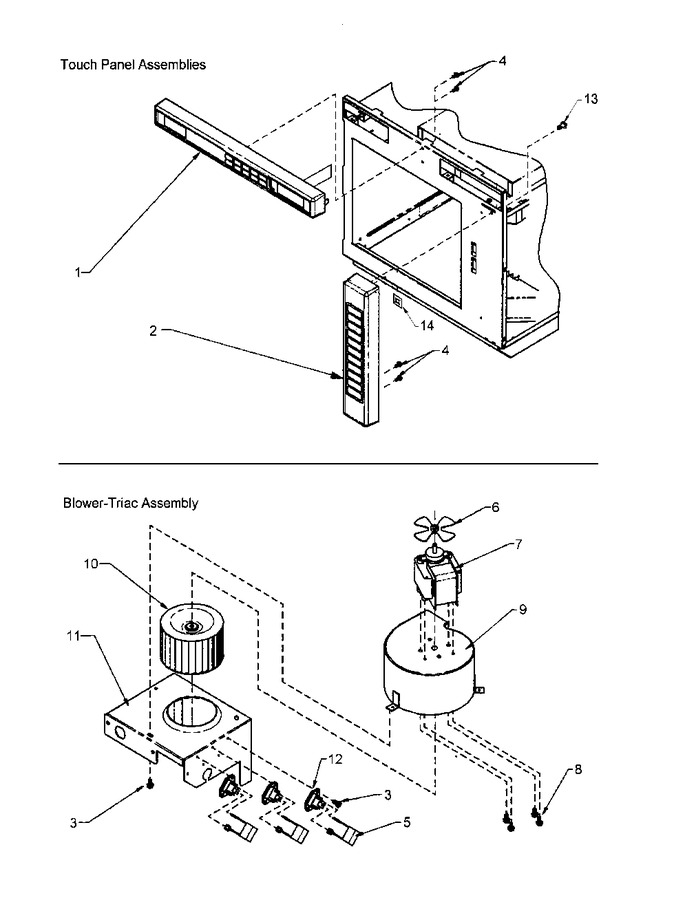

Diagram for RC17 (BOM: P1198601M)
