Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 5303279489 Trim-basket Appelez-nous -
10 5303001324 Tray-ice, Plastic Appelez-nous -
11 08000908 Shelf-freezer (2) Appelez-nous -
24 3200686 Frame-refr Shelf, Cantilever, (3) Appelez-nous -
25 5308009642 Cover-crisper Pan, Upper Special Order $ 163.55

26 5303207077 Pan-storage, Upper Appelez-nous -
29 5303207081 Trim-refr Shelf, (4) Appelez-nous -
33 5303205880 Gasket-crisper Cover Appelez-nous -
34 5303207065 Container-ice Appelez-nous -
35 5303207076 Trim-crisper Pan, (3) Appelez-nous -
36 5303207089 Frame-meat Kpr Shelf, Cantilever Appelez-nous -
39 5303207093 Trim-frzr Shelf, (5) Appelez-nous -
40 5303207082 Shelf-glass, Refr Shelf, (4) Appelez-nous -
41 3205561 Trim-refr Shelf, Rear, (4) Appelez-nous -
42 5303209749 Hanger-meat Pan Rh Appelez-nous -
45 08014528 Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P Special Order $ 4.31

49 5308017594 Basket-sliding Appelez-nous -
51 5303001098 Hanger, Basket, Rh Appelez-nous -
52 5303001099 Hanger, Basket, Lh Appelez-nous -
57 5303271652 Ferrule-outer Appelez-nous -
57 5303271653 Ferrule-inner Special Order $ 20.27

62 5303207092 Tray-deli Appelez-nous -
86 5303206533 Rack-egg, Hanging Appelez-nous -
*55262 5300170910 Clip-cantilever Shlf Special Order $ 2.60

11A 08000907 Shelf-freezer (3) Appelez-nous -
25A 5316972401 Cover-crisper Pan, Lower Appelez-nous -
26A 5303207078 Pan-storage, Lower Appelez-nous -
29A 3200683 Retainer-glass, Front, (3) (non-illustrated) Appelez-nous -
29B 5303207091 Gasket/retainer, Meat Kpr Shelf, Front (non-illustrated) Appelez-nous -
40A 3204595 Support-glass Shelf, Rail, (2 Per Shelf) (non-illustrated) Appelez-nous -
41A 5303207090 Gasket-meat Kpr Shlf, Rear (non-illustrated) Appelez-nous -
42A 5303209748 Hanger-meat Pan Lh (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

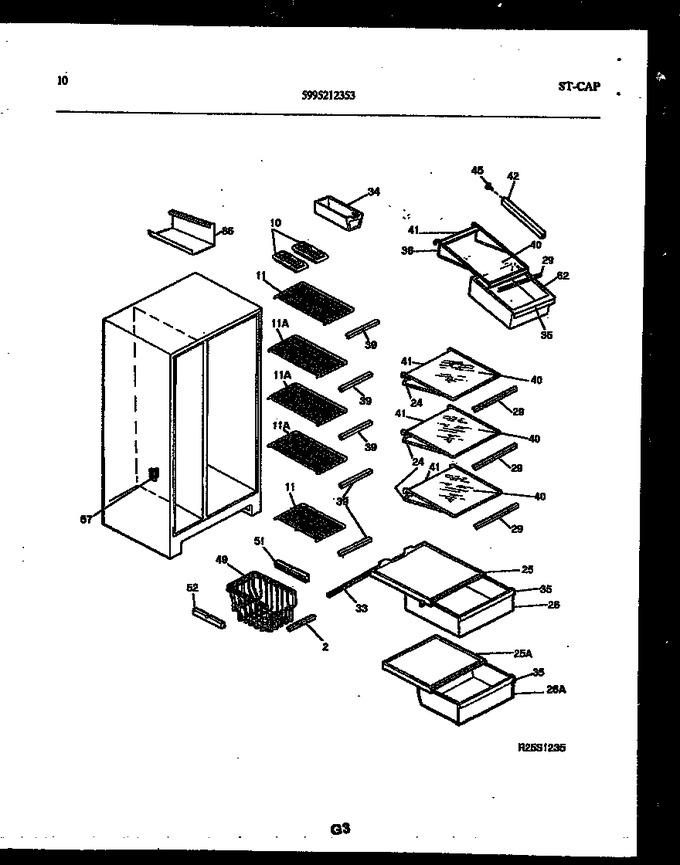

Diagram for RS227MCW2
