Diagram for 02 - Freezer Door Parts
02 - Freezer Door Parts

Diagram for 03 - Refrigerator Door Parts
03 - Refrigerator Door Parts

Diagram for 04 - Cabinet Parts
04 - Cabinet Parts

Diagram for 05 - Cabinet Parts
05 - Cabinet Parts

Diagram for 06 - Shelves And Supports
06 - Shelves And Supports

Diagram for 07 - Refrigerator Control Assembly, Damp
07 - Refrigerator Control Assembly, Damp

Diagram for 08 - System And Automatic Defrost Parts
08 - System And Automatic Defrost Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303200832 Gasket-frzr Door, Magnetic Appelez-nous -
5 5303204848 Support-door Rack, Rh, (5) Special Order $ 35.86

6 5303204849 Support-door Rack, Lh, (5) Special Order $ 21.11

8 5303207071 Rack-door, (5) Appelez-nous -
9 5303279525 Panel-inner Door, Frzr Appelez-nous -
11 5303916863 Panel-frzr Door, White Appelez-nous -
14 5315230801 Button Plug, Refr/fzr Door Appelez-nous -
17 5300177143 Handle End Appelez-nous -
18 5303279715 Handle-door, Full-length, W/end Caps Appelez-nous -
20 5300177142 Handle End Appelez-nous -
21 5308011745 Screw Special Order $ 10.38

22 5308012007 Bearing-hinge Appelez-nous -
22 5303001022 Bearing-hinge Upper Appelez-nous -
23 5303001020 Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2 Appelez-nous -
24 5303207070 Dispenser-juice Can Appelez-nous -
34 5308000790 Bumper, Light Switch Special Order $ 3.86

35 5303200272 Closer-door Appelez-nous -
58 5308002748 Screw Appelez-nous -
*55648 5303007739 Insulation, Door, Fiberglass, (bulk) Appelez-nous -
17A 5300179271 Trim-handle End (non-illustrated) Appelez-nous -
18A 5300177144 Clip-door Handle (non-illustrated) Appelez-nous -
20A 5300179270 Trim-handle End (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

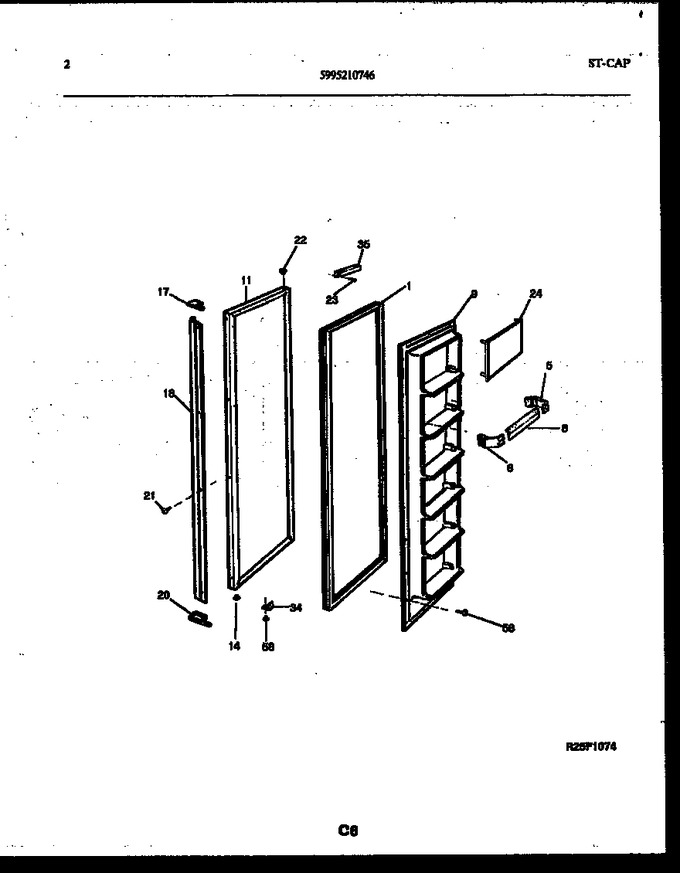

Diagram for RS227NCH0
