01 - Antennas, Blower, Ducts,
02 - Door
03 - Electrical Components
04 - Supplemental Information
05 - Tray, Grease Shield, Cabinet,
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

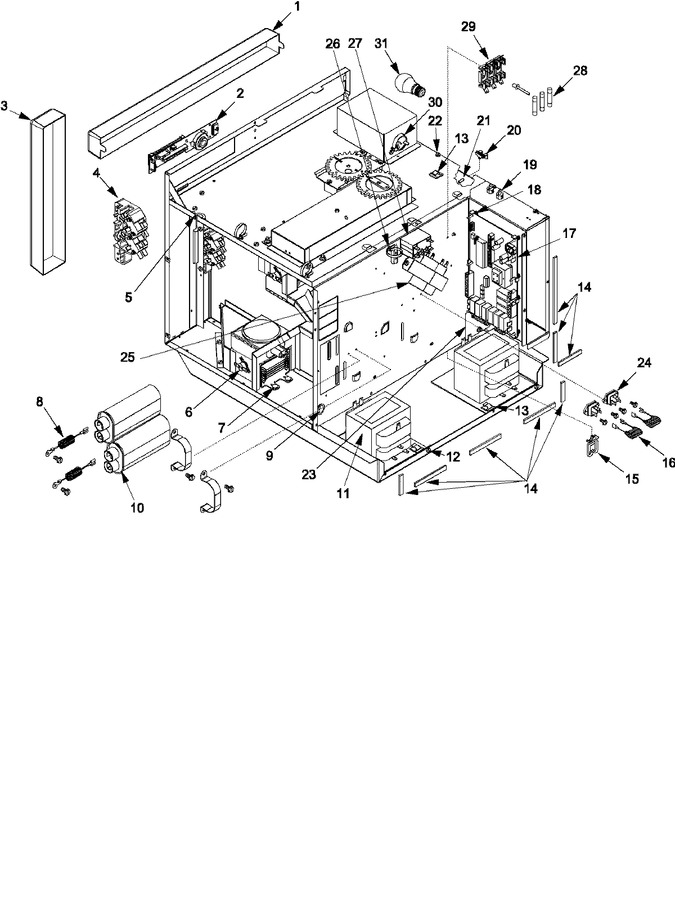

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0231717 | Screw, Tf |
|
- | |||||
| 1 | R0130108 | Touch Panel(top) |
|
- | |||||
| 2 | M0234114 | Screw |
|
- | |||||
| 2 | 12502401 | Board,display Xxx |
|
- | |||||
| 3 | M0231717 | Screw, Tf |
|
- | |||||
| 3 | R0130109 | Touch Panel(side) |
|
$ 306.74 | |||||
| 4 | 59001114 | Switch, Interlock |
|
- | |||||
| 4 | M0216517 | Screw |
|
- | |||||
| 5 | A3293505 | Bushing-snap |
|
- | |||||
| 6 | M0229916 | Screw T.c |
|
- | |||||
| 6 | B5684124 | Cutout-thermal Magnetron |
|
- | |||||
| 7 | 10489402 | Magnetron-t |
|
- | |||||
| 8 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 8 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 9 | 59001128 | Bushing, Snap |
|
- | |||||
| 10 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 10 | A4055405 | Strap, Capacitor |
|
- | |||||
| 10 | D8547927 | Capacitor-.69 |
|
- | |||||
| 11 | 10788613 | Transformer-hv |
|
- | |||||
| 12 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 13 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 7.00 | |||||
| 14 | A3030301 | Gasket (inch) |
|
- | |||||
| 15 | B5667304 | Wire Clip |
|
- | |||||
| 16 | 10172901Q | Snubber Assembly |
|
- | |||||
| 17 | 59001002 | Board,hv |
|
- | |||||
| 18 | M0590602 | Support P-c Bd A |
|
- | |||||
| 19 | M0325401 | Bushing,terminal |
|
- | |||||
| 20 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| 20 | B5795306 | Thermal Cutout |
|
- | |||||
| 21 | M0308801 | Cap, Protective-threaded (red) |
|
- | |||||
| 22 | M0231617 | Screw,tf |
|
- | |||||
| 23 | WPW10001160 | Screw (Replaces: M0200316) |
|
$ 8.86 | |||||
| 23 | 10847601 | Plate, Partition |
|
- | |||||
| 24 | D7681501 | Triac |
|
$ 44.05 | |||||
| 24 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 25 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 25 | C8901509 | Transformer-auto |
|
- | |||||
| 26 | M0322202 | Tie Wire |
|
- | |||||
| 27 | 12492202 | Relay |
|
- | |||||
| 30 | B8371401 | Receptacle, Lamp |
|
- | |||||
| 30 | M0231717 | Screw, Tf |
|
- | |||||
| 31 | 8009 | Lamp 41w (Replaces: 10664502) |
|
Immediately | $ 16.80 |
