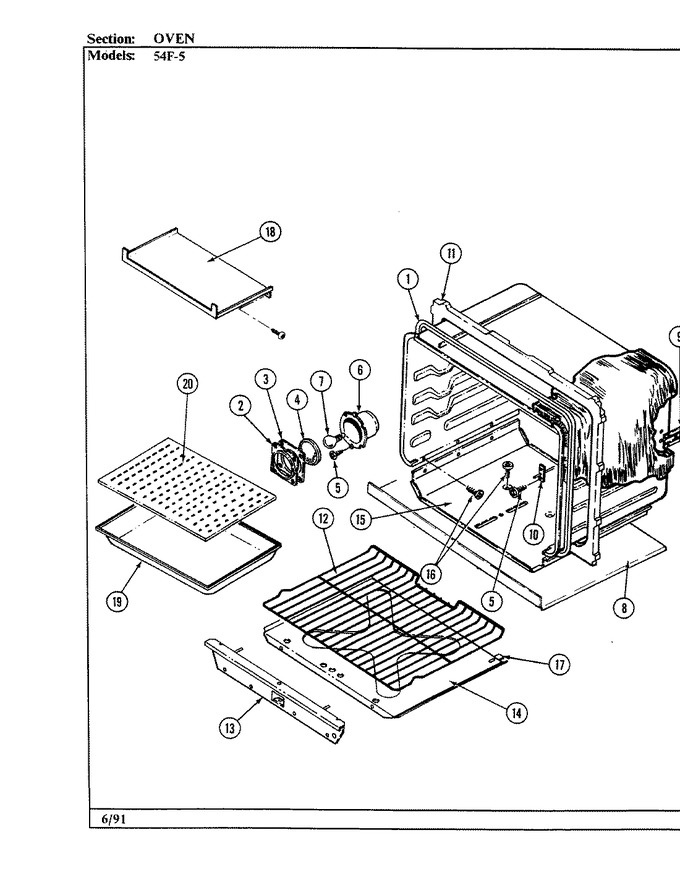

06 - Oven (54f-5tkxw)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7201P036-60		Gasket, Oven	01			$ 118.90
2	3804F012-45		Retainer, Lamp Guard	01	Appelez-nous	-
3	7201P015-60		Gasket, Lamp Retainer	01	Appelez-nous	-
4	7201P014-60		Gasket, Housing	01	Appelez-nous	-
4	7902P057-60		Glass, Lamp Guard	01	Appelez-nous	-
5	7101P287-60		Screw, Metal Grounding	01			$ 12.03
6	4001F020-23		Housing, Lamp	01	Appelez-nous	-
7	40A15		Bulb, Oven   (Replaces: 7407P026-60)	01		Immediately	$ 1.98
8	3807F386-45		Support Baffle	01	Appelez-nous	-
9	3807F205-45		Support, Oven Rear	01	Appelez-nous	-
10	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	04		Immediately	$ 41.01
10	12001655		Oven Sensor Kit (34)   (Replaces: W10127322)	01		Immediately	$ 41.01
11	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
12	7801P031-60		Rack, Oven	01	Appelez-nous	-
13	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	01			$ 6.47
13	3601W125-15		Baffle, Ovn Front	01	Appelez-nous	-
13	7002P009-60		Insulation, Baffle	01	Appelez-nous	-
14	2205W021-15		Bottom, Oven	01	Appelez-nous	-
15	4001F060-45		Housing, Bake Burner	01	Appelez-nous	-
16	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
17	7107P006-60		Rivet, Ov Bot Ret	01	Appelez-nous	-
17	3804F010-50		Retainer	01	Appelez-nous	-
18	3601W130-45		Baffle, Bake & Broil	01	Appelez-nous	-
18	WP7101P126-60		Screw   (Replaces: 7101P273-60)	01		Immediately	$ 6.85
18	7112P050-60		Clip, Baffle	01	Appelez-nous	-
19	Y3401F02019		Pan, Broil	06	Appelez-nous	-
19	4396923		Pan, Broil   (Replaces: 3401F004-23)	01		Immediately	$ 52.04
20	Y3413F01619		Insert, Broil Pan	06	Appelez-nous	-
20	3413F002-23		Insert, Broil Pan	01	Appelez-nous	-
