SELECT A DIAGRAM

01 - Base (cm48f-14t-02)

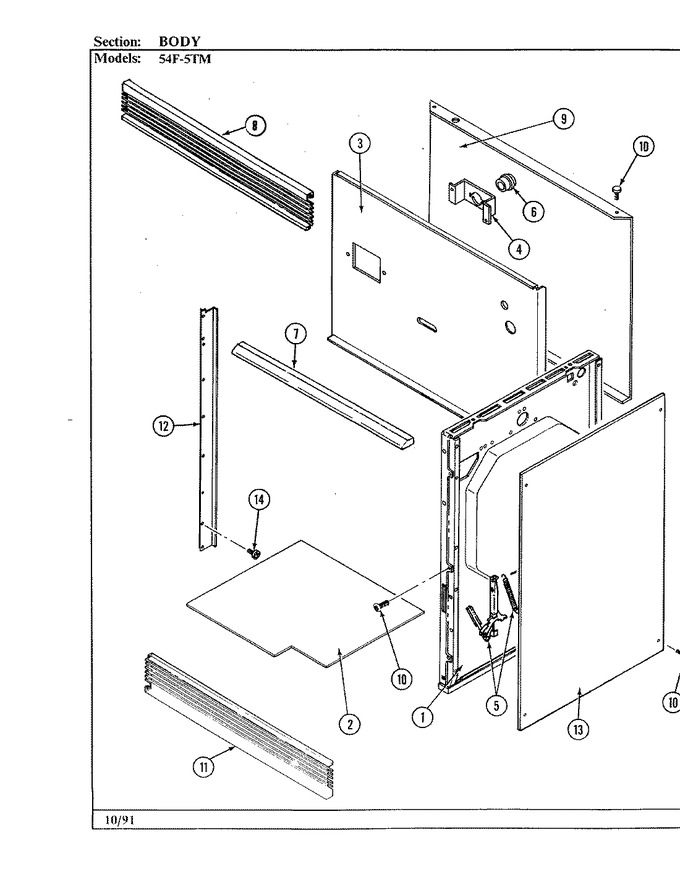

02 - Body


03 - Control Panel (cm48f-14t-02)


04 - Door


05 - Door (cm48f-14t-02)


06 - Gas Controls


07 - Interlock Switches (cm48f-14t-02)


08 - Internal Controls


09 - Internal Controls (cm48f-14t-02)


10 - Oven


11 - Turntable (cm48f-14t-02)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7103P041-60		Nut, Snap (round-blk)	01	Appelez-nous	-
1	4009W082-80		Lining Assy Inner Side	01	Appelez-nous	-
1	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	01			$ 4.29
2	3604F155-45		Shield Floor	01	Appelez-nous	-
3	4002F155-80		Back, Main	01	Appelez-nous	-
4	3801F024-51		Bracket	01	Appelez-nous	-
5	7106P031-60		Hinge, Door	01	Appelez-nous	-
6	7408P034-60		Receptacle, Oven Light	01	Appelez-nous	-
7	7756P052-60		Extrusion Ctr Trim Blk	01	Appelez-nous	-
8	7756P054-60		Extrusion Top Vent	01	Appelez-nous	-
9	4005F333-51		Cover Back	01	Appelez-nous	-
10	7402S032-60		Cord, Power	01	Appelez-nous	-
10	7401P018-60		Block	01	Appelez-nous	-
10	8007P003-60		Bushing, Snap	01	Appelez-nous	-
10	7417P002-60		Connector, Pin	01	Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
11	7756P050-60		Extrusion, Bottom	01	Appelez-nous	-
12	7750P044-60		Extrusion Side Rt	01	Appelez-nous	-
12	7750P045-60		Extrusion Side Lf	01	Appelez-nous	-
13	3604F180-45		Shield Side	01	Appelez-nous	-
14	4005F354-70		Strip, Bottom (blk)	01	Appelez-nous	-
14	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
14	7101P013-60		Screw, Special	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
