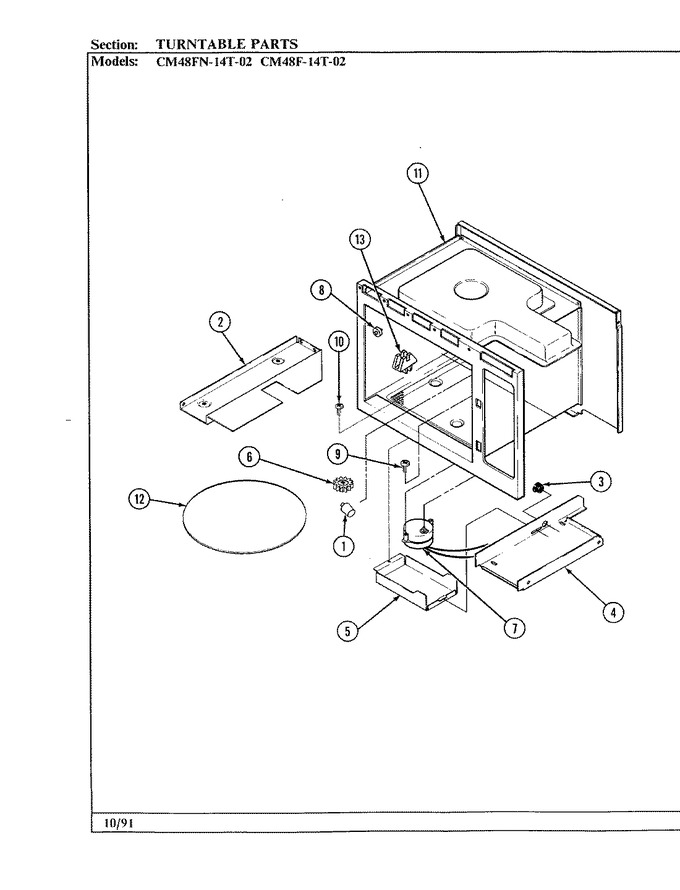

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y03070041 | Pin, Pivot | 01 |
|
- | ||||
| 2 | 04021455 | Brace, Lower Support | 01 |
|
- | ||||
| 3 | Y03140008 | Bushing | 01 |
|
- | ||||
| 4 | 02300039 | Cover, Mtg Plate | 01 |
|
- | ||||
| 5 | Y02300050 | Cover, Motor Turntable | 01 |
|
- | ||||
| 6 | Y02450002 | Gear, Turntable | 01 |
|
- | ||||
| 7 | 01110022 | Motor, Turntable | 01 |
|
- | ||||
| 8 | 02210011 | Roller | 01 |
|
- | ||||
| 8 | Y03110070 | Clip - Push On | 01 |
|
- | ||||
| 9 | 03010151 | Screw | 01 |
|
- | ||||
| 10 | Y03020076 | Screw | 01 |
|
- | ||||
| 11 | 04021491 | Cavity | 01 |
|
- | ||||
| 12 | Y02460007 | Turntable | 01 |
|
- | ||||
| 13 | Y02100186 | Support, Roller | 01 |
|
- |
