01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Shelves & Accessories


08 - Unit Compartment & System


09 - Wiring Information

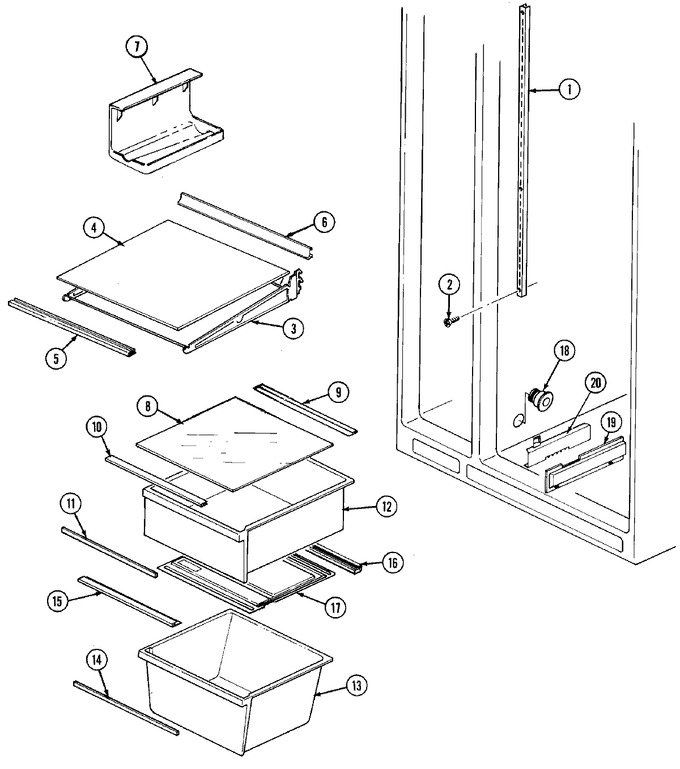

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support	10	Appelez-nous	-
2	400037-28		Screw	10	Appelez-nous	-
3	70106-6		Frame, Shelf	10	Appelez-nous	-
4	68139-30		Glass, Cantilever Shelf	10	Appelez-nous	-
5	70107-12		Trim, Shelf (front)	10	Appelez-nous	-
6	70110-4		Trim, Shelf	10	Appelez-nous	-
7	69615-1		Holder, Beverage	10	Appelez-nous	-
8	68139-31		Shelf, Crisper (glass)	10	Appelez-nous	-
9	68157-1		Seal, Crisper Pan (rear)	10	Appelez-nous	-
10	66650-1		Trim	10	Appelez-nous	-
11	68124-103		Insert, Crisper Pan Handle	10	Appelez-nous	-
12	66509-25		Pan, Crisper Lower	10	Appelez-nous	-
13	66510-25		Pan, Meat	10	Appelez-nous	-
14	68124-102		Insert, Meat Front Handle	10	Appelez-nous	-
15	65648-1		Seal, Meat Pan (front)	10	Appelez-nous	-
16	65649-1		Seal, Meat Pan (rear)	10	Appelez-nous	-
17	65608-5		Cover, Meat Pan	10	Appelez-nous	-
18	53726-2		Tunnel, Air (meat)	10	Appelez-nous	-
19	65737-2		Control Housing	10	Appelez-nous	-
20	56686-4		Clip	10	Appelez-nous	-
20	65736-1		Slide Control, (meat)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
