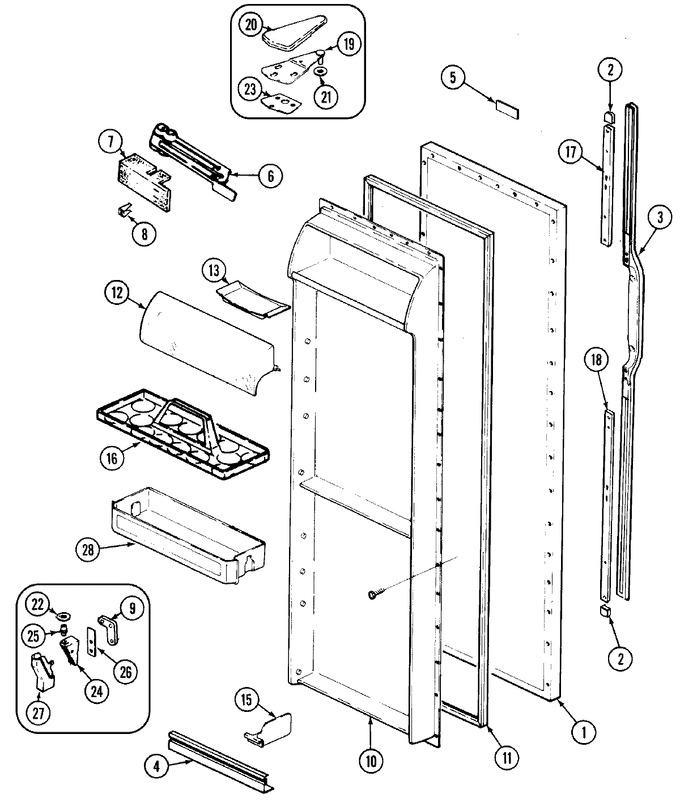

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72341-1-WW | Panel, Outer Door (wht) | 10 |
|
- | ||||
| 2 | 69590-1 | End Cap, Handle | 10 |
|
- | ||||
| 3 | 12000039 | Kit, Handle Assy. (wht) | 10 |
|
- | ||||
| 4 | 70197-1 | Retainer, Shelf Trim | 10 |
|
Immediately | $ 14.18 | |||
| 4 | 70112-1 | Retainer, Bottle | 10 |
|
- | ||||
| 4 | WP70111-108 | Trim, Shelf (Replaces: 70111-62) | 10 |
|
Immediately | $ 104.35 | |||
| 5 | 66982-31 | Nameplate (wht) | 10 |
|
- | ||||
| 5 | 29356-1 | Retainer, Nameplate | 10 |
|
- | ||||
| 6 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 6 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 7 | 69263-1 | Insulation, Door Closer | 10 |
|
- | ||||
| 8 | 69261-1 | Bracket, Closer | 10 |
|
- | ||||
| 9 | 65275-59 | Screw | 10 |
|
- | ||||
| 9 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 10 | 69238-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 10 | 65275-5 | Screw | 10 |
|
- | ||||
| 11 | 70024-3 | Gasket | 10 |
|
- | ||||
| 12 | 66184-393 | Door, Dairy | 10 |
|
- | ||||
| 13 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 14 | 69871-5 | Front, Pick-off | 10 |
|
$ 48.36 | ||||
| 15 | 70114-1 | Organizer, Shelf | 10 |
|
- | ||||
| 16 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 17 | 69586-3 | Trim, Handle Ext. (upper) | 10 |
|
- | ||||
| 18 | 69586-4 | Trim, Handle Ext. (lower) | 10 |
|
- | ||||
| 19 | WP3-24838-048 | Screw (Replaces: 9986-87) | 10 |
|
$ 7.00 | ||||
| 19 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 20 | 70121-4 | Cover, Upper Hinge (wht) | 10 |
|
- | ||||
| 21 | WP52185-1 | Washer (Replaces: 52185-1) | 10 |
|
Immediately | $ 9.47 | |||
| 22 | 67483-3 | Washer, Door Spacer | 10 |
|
Immediately | $ 45.86 | |||
| 23 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 24 | 69516-4 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 24 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 25 | 70060-1 | Pin, Hinge | 10 |
|
- | ||||
| 26 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 26 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 27 | 68978-4 | Cover, Lower Hinge (wht) | 10 |
|
- |
