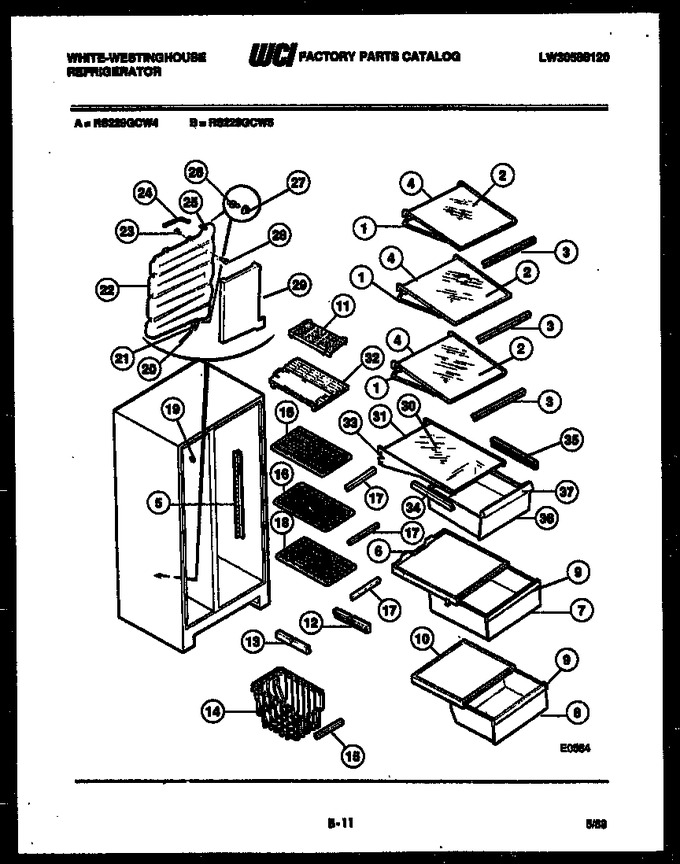

SELECT A DIAGRAM

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tanks


08 - Ice Dispenser


09 - Ice Maker And Installation Parts


10 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178323-07		Shelf Frame (3)		Appelez-nous	-
2	G171654-31		Glass-shelf (3)		Appelez-nous	-
3	G187267-13		Trim-front (4)		Appelez-nous	-
4	G172409-12		Trim-rear (3)		Appelez-nous	-
5	G170694		Channel-rs And Ls		Appelez-nous	-
6	G169711-01		Cover-upper Pan		Appelez-nous	-
7	G179709-01		Pan-upper		Appelez-nous	-
8	G179710-01		Pan-lower		Appelez-nous	-
9	G177343-06		Trim-pan (2)		Appelez-nous	-
10	G169724-01		Cover-lower Pan		Appelez-nous	-
11	G181185-01		Shelf-freezer Upper		Appelez-nous	-
12	G168986		Hanger-basket Rs		Appelez-nous	-
13	G168987		Hanger-basket Ls		Appelez-nous	-
14	G184748		Basket-freezer		Appelez-nous	-
15	G165746-11		Trim-basket		Appelez-nous	-
16	G180425-03		Shelf-freezer (2)		Appelez-nous	-
17	3015092		Trim (3)		Appelez-nous	-
18	G180425-04		Shelf-freezer		Appelez-nous	-
19	G167565		Grommet-shelf (6)		Appelez-nous	-
20	3015130		Tube-water		Appelez-nous	-
21	G166705		Clamp-tube		Appelez-nous	-
22	G186055		Tank-water		Appelez-nous	-
23	G163938		Support-tank (3)		Appelez-nous	-
24	3015131		Tube-water		Appelez-nous	-
25	G166705		Clamp-tube		Appelez-nous	-
26	G186058		Connector-tube (2)		Appelez-nous	-
27	G186057		Grommet-tank (2)		Appelez-nous	-
28	G163308		Screw (3)		Appelez-nous	-
29	G163925-02		Cover, Water Tank		Appelez-nous	-
30	G171654-32		Glass-shelf		Appelez-nous	-
31	G172409-13		Trim-rear		Appelez-nous	-
32	G185494-01		Shelf-freezer		Appelez-nous	-
33	G187217-03		Shelf-meat Keeper		Appelez-nous	-
34	G187215-02		Rail-hanger Lh		Appelez-nous	-
35	G187216-02		Rail-hanger Rh		Appelez-nous	-
36	G179915-01		Pan-storage		Appelez-nous	-
37	G177343-06		Trim, Pan		Appelez-nous	-
11A	G177706-06		Label-freezer Shelf (non-illustrated)		Appelez-nous	-
32A	G177706-07		Label-freezer (non-illustrated)		Appelez-nous	-
5A	G166567		Screw-channel (8) (non-illustrated)		Appelez-nous	-
6A	G180108-03		Gasket-upper Pan (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
