01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


06 - Water & Ice Dispenser

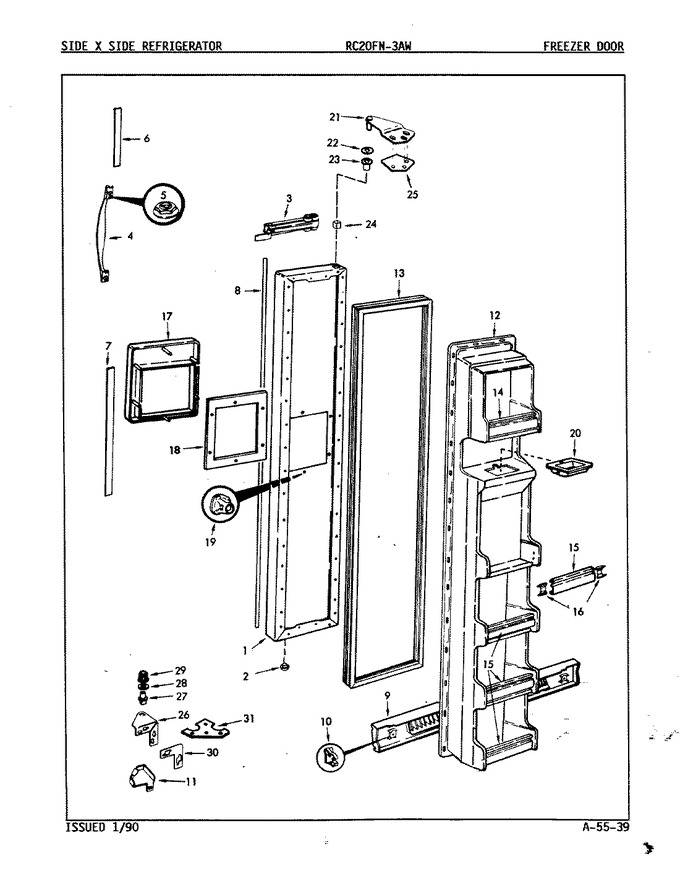

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	63069-19-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
3	52613-1		Insulation, Closer		Appelez-nous	-
4	63686-3		Handle		Appelez-nous	-
5	434003-506		Fastener		Appelez-nous	-
6	65774-7		Handle Ext		Appelez-nous	-
7	65774-8		Handle Ext		Appelez-nous	-
8	65773-13		Trim		Appelez-nous	-
9	56478-37		Kickplate		Appelez-nous	-
10	52854-3		Clip, Kickplate		Appelez-nous	-
12	9986-12		Screw,door Liner		Appelez-nous	-
12	59433-201		Inner Panel		Appelez-nous	-
13	53712-5		Gasket		Appelez-nous	-
14	65151-233		Trim, Door Shelf		Appelez-nous	-
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-212)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	60482-25		Escutcheon		Appelez-nous	-
18	63057-1		Seal, Escutcheon		Appelez-nous	-
19	65211-2		Retainer, Escutcheon		Appelez-nous	-
20	66775-2		Collar		Appelez-nous	-
21	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
21	53709-22		Hinge, Upper		Appelez-nous	-
22	52185-2		Washer		Appelez-nous	-
23	66036-2		Bushing, Upper Hinge		Appelez-nous	-
24	55990-1		Seal Sleeve		Appelez-nous	-
25	65031-1		Shim, Upper Hinge		Appelez-nous	-
26	60630-4		Hinge		Appelez-nous	-
26	403062-801		Screw		Appelez-nous	-
27	65418-1		Pin		Appelez-nous	-
28	54233-2		Washer		Appelez-nous	-
29	66037-1		Hinge Bushing		Appelez-nous	-
30	60626-1		Shim, Lower Hinge		Appelez-nous	-
31	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
