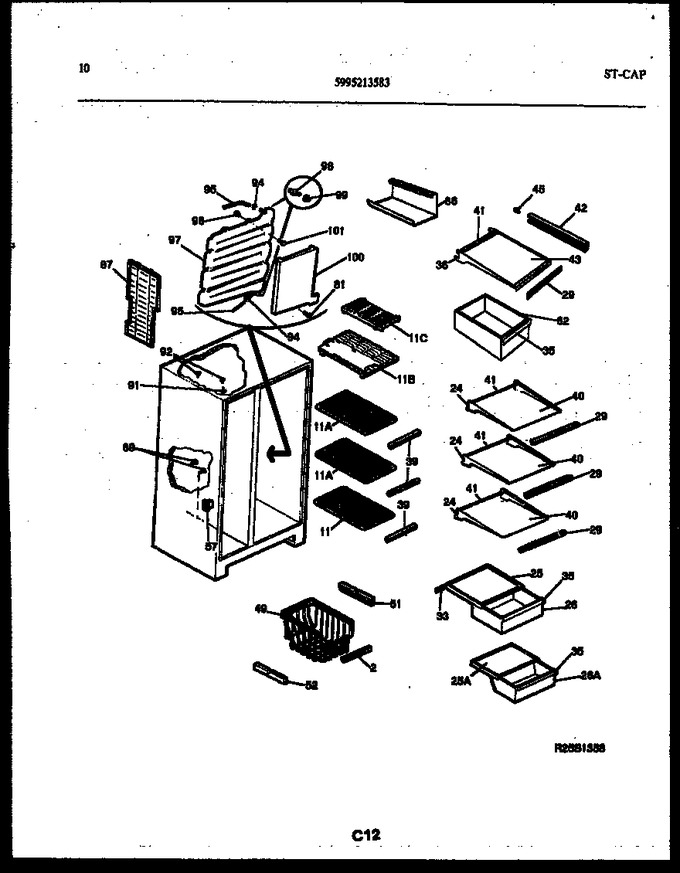

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303279489 | Trim-basket |
|
- | |||||
| 11 | 08000908 | Shelf-freezer |
|
- | |||||
| 24 | 5303209744 | Frame-refr Shelf, Cantilever, (3) |
|
- | |||||
| 25 | 5308009642 | Cover-crisper Pan, Upper |
|
$ 163.55 | |||||
| 26 | 5303207077 | Pan-storage, Upper |
|
- | |||||
| 29 | 5303207081 | Trim-refr Shelf, (4) |
|
- | |||||
| 33 | 5303205880 | Gasket-crisper Cover |
|
- | |||||
| 35 | 5303207076 | Trim-crisper Pan, (3) |
|
- | |||||
| 36 | 5303209747 | Frame-meat Kpr Shelf, Cantilever |
|
- | |||||
| 39 | 5303207093 | Trim-frzr Shelf, (3) |
|
- | |||||
| 40 | 5303209779 | Shelf-glass, (3) |
|
- | |||||
| 41 | 5303211416 | Trim-refr Shelf, Rear, (4) |
|
- | |||||
| 42 | 5303209749 | Hanger-meat Pan Rh |
|
- | |||||
| 43 | 5303209780 | Shelf-glass, Meat Kpr Shelf |
|
- | |||||
| 45 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| 49 | 5308017594 | Basket-sliding, (2) |
|
- | |||||
| 51 | 5303001098 | Hanger, Basket, Rh |
|
- | |||||
| 52 | 5303001099 | Hanger, Basket, Lh |
|
- | |||||
| 57 | 5303271652 | Ferrule-outer |
|
- | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 62 | 5303207092 | Tray-deli |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 86 | 5303206533 | Rack-egg, Hanging |
|
- | |||||
| 87 | 5303017208 | Divider-icemaker |
|
- | |||||
| 89 | 5303017391 | Screw-shlf/im Mtg, Ind Hx Wa Hd Sm, 8-18(ab) X 1-1/8 |
|
- | |||||
| 11A | 08000907 | Shelf-freezer (2) |
|
- | |||||
| 11B | 5308015608 | Shelf-freezer, Plastic, Lower |
|
- | |||||
| 11C | 5303017212 | Shelf-freezer, Plastic, Upper |
|
- | |||||
| 11D | 5303280647 | Label-lwr Frzr Shelf (non-illustrated) |
|
- | |||||
| 11E | 5303280646 | Label-upr Frzr Shelf (non-illustrated) |
|
- | |||||
| 25A | 5316972401 | Cover-crisper Pan, Lower |
|
- | |||||
| 26A | 5303207078 | Pan-storage, Lower |
|
- | |||||
| 29A | 5303209742 | Retainer-glass (3) (non-illustrated) |
|
- | |||||
| 29B | 5303211942 | Retainer/gasket, Meat Kpr Shelf, Front (non-illustrated) |
|
- | |||||
| 41A | 5303209783 | Gasket-meat Kpr Shlf, Rear (non-illustrated) |
|
- | |||||
| 41B | 5303211351 | Lock-rear Trim (non-illustrated) |
|
- | |||||
| 42A | 5303209748 | Hanger-meat Pan Lh (non-illustrated) |
|
- |
