SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

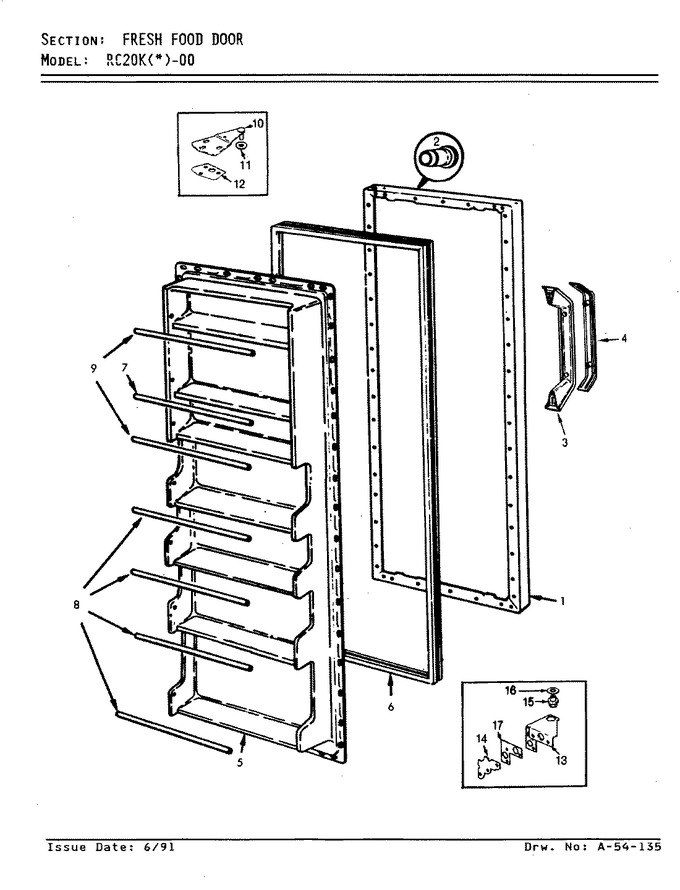

04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68458-6-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	29356-1		Retainer, Nameplate		Appelez-nous	-
3	66799-1		Achor, Screw		Appelez-nous	-
3	65156-3		Handle, Door		Appelez-nous	-
3	9986-93		Screw		Appelez-nous	-
4	9986-112		Screw		Appelez-nous	-
4	65155-9		Insert		Appelez-nous	-
5	65275-5		Screw		Appelez-nous	-
5	59433-158		Inner Panel		Appelez-nous	-
6	66929-27		Gasket		Appelez-nous	-
7	53605-10		Trim		Appelez-nous	-
8	53605-11		Trim		Appelez-nous	-
9	53605-15		Trim		Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
10	53709-18		Door Hinge, Upper		Appelez-nous	-
11	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
12	65031-1		Shim, Upper Hinge		Appelez-nous	-
13	67714-10		Hinge, Lower		Appelez-nous	-
13	403100-1		Screw		Appelez-nous	-
14	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
15	68788-1		Hinge Pin		Appelez-nous	-
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
17	60626-1		Shim, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
