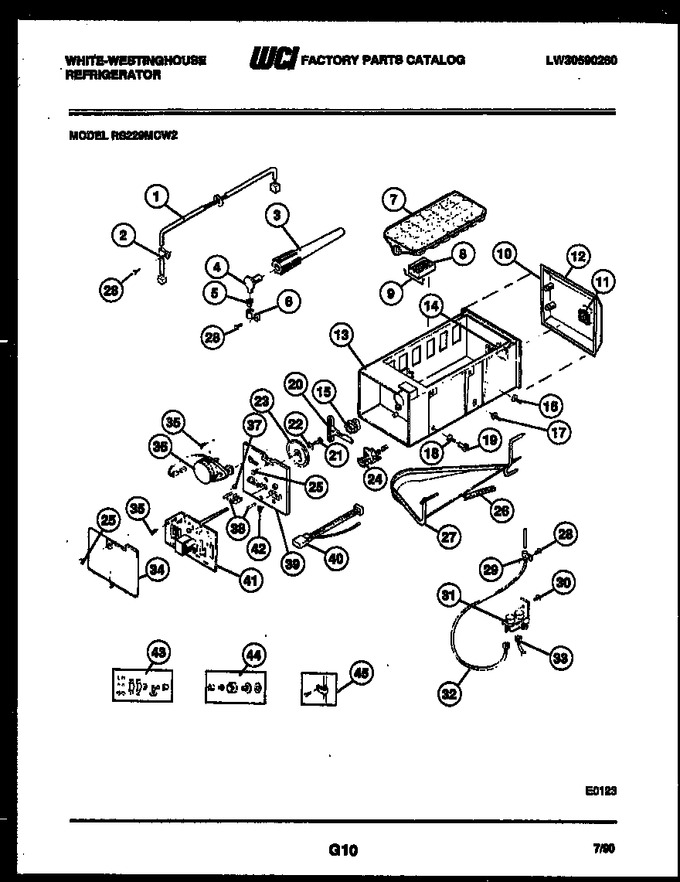

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017210 | Wiring Harness-ice And Water |
|
- | |||||
| 2 | 5308000132 | Clamp-tube (2) |
|
- | |||||
| 3 | 5308015765 | Tube-filler Extension |
|
- | |||||
| 4 | 5308010269 | Tube-filler |
|
- | |||||
| 5 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 6 | 5303001193 | Clamp-tube |
|
$ 16.30 | |||||
| 7 | 5308015579 | Ice Tray |
|
- | |||||
| 8 | 5303001141 | Insulator-thermostat |
|
$ 23.52 | |||||
| 9 | 5301138379 | Retainer-insulator |
|
$ 3.89 | |||||
| 10 | 5303017384 | Cover - I/m Front |
|
- | |||||
| 11 | 5303017383 | Velcro Pad-cover |
|
- | |||||
| 12 | 5303208981 | Label-cover |
|
- | |||||
| 13 | 5308015618 | Housing - Ice Maker |
|
- | |||||
| 14 | 5303017382 | Velcro Pad-housing |
|
- | |||||
| 15 | 5308015576 | Gear - Sliding Spur |
|
- | |||||
| 16 | 5303017391 | Screw (4) |
|
- | |||||
| 17 | 5300182506 | Screw |
|
- | |||||
| 18 | 5303017717 | Screw - Leveling |
|
- | |||||
| 19 | 3204772 | Cap-leveling Screw |
|
- | |||||
| 20 | 5308015571 | Rack - Gear |
|
- | |||||
| 21 | 5303001119 | Shaft-crank Gear |
|
- | |||||
| 22 | 5303001117 | Washer-crank Shaft |
|
- | |||||
| 23 | 5301124984 | Gear-crank |
|
- | |||||
| 24 | 5303017390 | Cam - Ice Level |
|
- | |||||
| 25 | 5303001083 | Screw (4) |
|
- | |||||
| 26 | 5303017392 | Spring - Sensing Arm |
|
- | |||||
| 27 | 5303015044 | Sensing Arm |
|
- | |||||
| 28 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 29 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 30 | 5308000039 | Screw |
|
- | |||||
| 31 | 5308017599 | Water Valve Solenoid |
|
$ 67.90 | |||||
| 32 | 5303015131 | Tube-valve To Filler Tube |
|
- | |||||
| 33 | 5303015130 | Tube-valve To Tank |
|
- | |||||
| 34 | 5308950226 | Cover & Lever Assy |
|
- | |||||
| 35 | 5308015609 | Screw (5) |
|
- | |||||
| 36 | 5301124982 | Motor-ice Maker |
|
- | |||||
| 37 | 5303001118 | Nut - Hex 10-32 Lh |
|
- | |||||
| 38 | 5308015569 | Cam Follower - Pin |
|
- | |||||
| 39 | 5308015562 | Plate - Mounting |
|
- | |||||
| 40 | 5308015592 | Wiring Harness-pcb |
|
- | |||||
| 41 | 5308011238 | Printed Circuit Board |
|
- | |||||
| 42 | 5308010348 | Retaining Ring |
|
- | |||||
| 43 | 65801LF | Saddle-valve Kit (Replaces: 5308000247) |
|
Immediately | $ 8.27 | ||||
| 44 | 3206360 | Water Supply Adapter Kit |
|
$ 94.66 | |||||
| 45 | 5304455846 | Clamp-copper Tube (Replaces: 5303001549) |
|
$ 10.63 | |||||
| *21966 | 5303207333 | Holder-tube |
|
- | |||||
| *21966 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| *21966 | 5303015102 | Cap-water Valve |
|
- | |||||
| 45A | 5308000039 | Screw |
|
- |
