SELECT A DIAGRAM
01 - Freezer Compartment

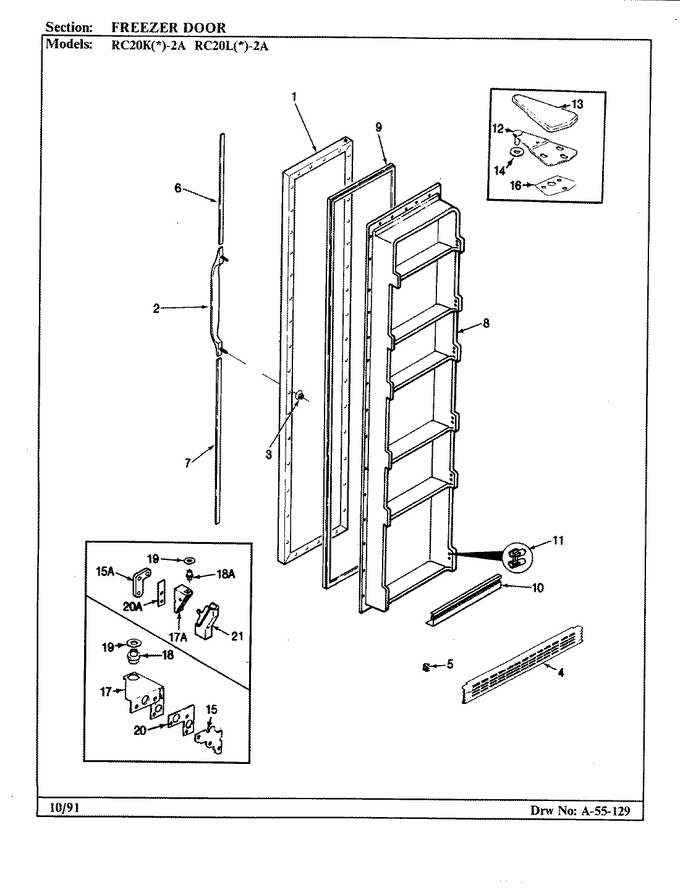

02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72046-6-AM | Panel, Frz. Door (alm) |
|
- | |||||
| 2 | 63686-3 | Handle |
|
- | |||||
| 3 | 434003-506 | Fastener |
|
- | |||||
| 4 | WP489478 | Screw, Kickplate Mtg. (Replaces: 9986-101) |
|
$ 6.98 | |||||
| 4 | 58437-45 | Kickplate |
|
- | |||||
| 5 | 52854-3 | Clip, Kickplate |
|
- | |||||
| 6 | 68657-1 | Trim |
|
- | |||||
| 7 | 68657-2 | Trim |
|
- | |||||
| 8 | 59433-215 | Inner Panel |
|
- | |||||
| 8 | 65275-5 | Screw |
|
- | |||||
| 9 | 66929-28 | Gasket |
|
- | |||||
| 10 | WP61003045 | Trim, Door Shelf (Replaces: 65151-3) |
|
$ 129.55 | |||||
| 11 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 12 | 53709-18 | Door Hinge, Upper |
|
- | |||||
| 12 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 13 | 65003-3 | Cover, Upper Hinge (alm) |
|
- | |||||
| 14 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 15 | 65964-2 | Tapping Plate |
|
- | |||||
| 16 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 17 | 67714-8 | Hinge, Lower |
|
- | |||||
| 17 | 403100-1 | Screw |
|
- | |||||
| 18 | 68788-1 | Hinge Pin |
|
- | |||||
| 19 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) |
|
Immediately | $ 45.86 | ||||
| 20 | 60626-1 | Shim, Lower Hinge |
|
- |
