SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

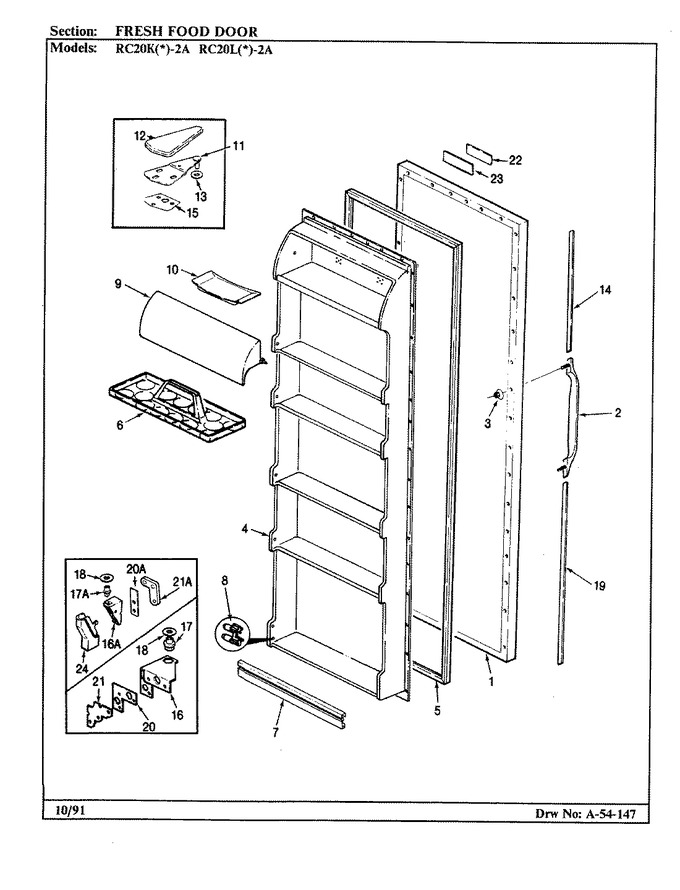

04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69029-2-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	63686-3		Handle		Appelez-nous	-
3	434003-506		Fastener		Appelez-nous	-
4	65944-9		Liner, Door		Appelez-nous	-
4	65275-5		Screw		Appelez-nous	-
5	66929-27		Gasket		Appelez-nous	-
6	60066-1		Tray, Egg		Appelez-nous	-
7	WP61003045		Trim, Door Shelf   (Replaces: 65151-298)				$ 129.55
8	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
9	66184-393		Door, Dairy		Appelez-nous	-
10	29936-2		Tray, Butter		Appelez-nous	-
11	53709-18		Door Hinge, Upper		Appelez-nous	-
11	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
12	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
13	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
14	68657-1		Trim		Appelez-nous	-
15	65031-1		Shim, Upper Hinge		Appelez-nous	-
16	68975-2		Hinge, Lower		Appelez-nous	-
16	65275-51		Screw, Lower Hinge		Appelez-nous	-
17	68977-1		Pin, Hinge		Appelez-nous	-
18	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
19	68657-2		Trim		Appelez-nous	-
20	69031-1		Shim		Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
21	65275-10		Screw, Tapping Plate		Appelez-nous	-
22	66982-14		Nameplate (blk)		Appelez-nous	-
24	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
