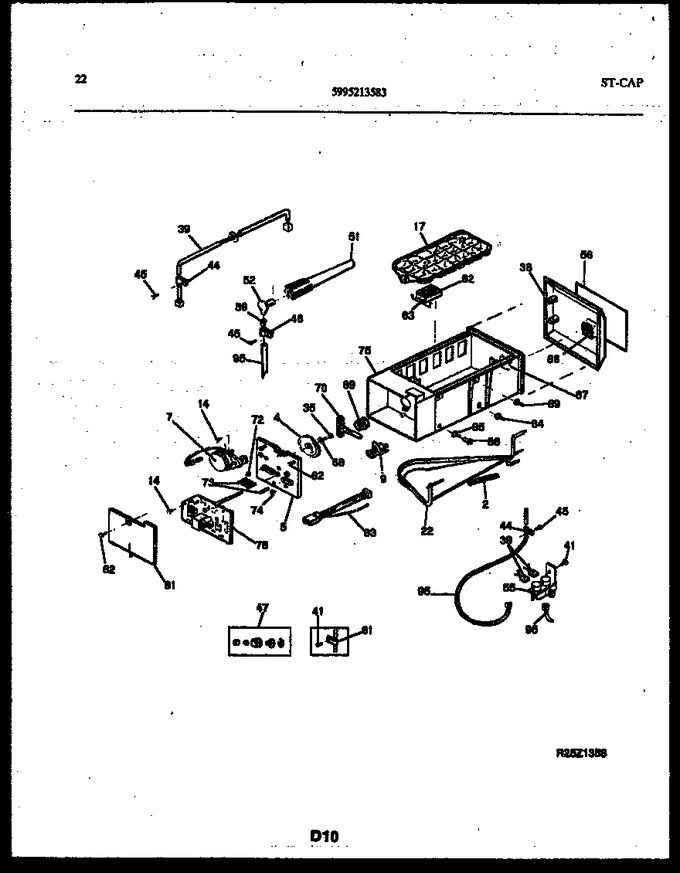

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303017392 | Spring - Sensing Arm |
|
- | |||||
| 4 | 5301124984 | Gear-crank |
|
- | |||||
| 5 | 5308015562 | Plate - Mounting |
|
- | |||||
| 7 | 5301124982 | Motor-ice Maker |
|
- | |||||
| 9 | 5303017390 | Cam - Ice Level |
|
- | |||||
| 14 | 5308015609 | Screw, Tw Hx Cr Pan Hd, 4-20 X 1/4 |
|
- | |||||
| 17 | 5308015579 | Tray-ice |
|
- | |||||
| 22 | 5303015044 | Arm-sensing |
|
- | |||||
| 35 | 5303001119 | Shaft-crank Gear |
|
- | |||||
| 36 | 5303017384 | Cover/front-im |
|
- | |||||
| 39 | 5303017210 | Wiring Harness - Ice & Water |
|
- | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 44 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 5303001193 | Clamp-inlet Tube, Metal |
|
$ 16.30 | |||||
| 47 | 3206360 | Adapter-water Supply |
|
$ 94.66 | |||||
| 51 | 5308015765 | Tube-filler Extension |
|
- | |||||
| 52 | 5308010269 | Tube-water Inlet |
|
- | |||||
| 55 | 5308017599 | Valve-solenoid/water, Dual |
|
$ 67.90 | |||||
| 56 | 5303208981 | Label-ice Maker |
|
- | |||||
| 59 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 61 | 5304455846 | Clamp-copper Tube, Steel (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 62 | 5303001141 | Insulator-thermostat |
|
$ 23.52 | |||||
| 63 | 5301138379 | Retainer-insulator |
|
$ 3.89 | |||||
| 68 | 5303001117 | Washer-crank Shaft |
|
- | |||||
| 69 | 5308015576 | Gear - Sliding Spur |
|
- | |||||
| 70 | 5308015571 | Rack - Gear |
|
- | |||||
| 72 | 5303001118 | Nut, Hex-lh Thread, 10-32 |
|
- | |||||
| 73 | 5308015569 | Follower Pin-cam, (5) |
|
- | |||||
| 74 | 5308010348 | Retainer Ring-cam |
|
- | |||||
| 75 | 5308015618 | Housing-ice Maker, W/ Cover & Label |
|
- | |||||
| 76 | 5308011238 | Pc Board |
|
- | |||||
| 81 | 5300191470 | Cover & Lever Assy, Lever 08027532 |
|
- | |||||
| 82 | 5303001083 | Screw, Tw Hx Cr Pan Hd, 8-16-1/2 |
|
- | |||||
| 83 | 5308015592 | Wiring Harness - Pc Board |
|
- | |||||
| 84 | 5300182506 | Screw, Spec Cr Pan Hd, 8-15(a) |
|
- | |||||
| 85 | 5303017717 | Screw-im Leveling, Ind Hex Wshr Hd, 8-18(b) X 7/8 |
|
- | |||||
| 55A | 5303015102 | Cap-water Valve (non-illustrated) |
|
- |
