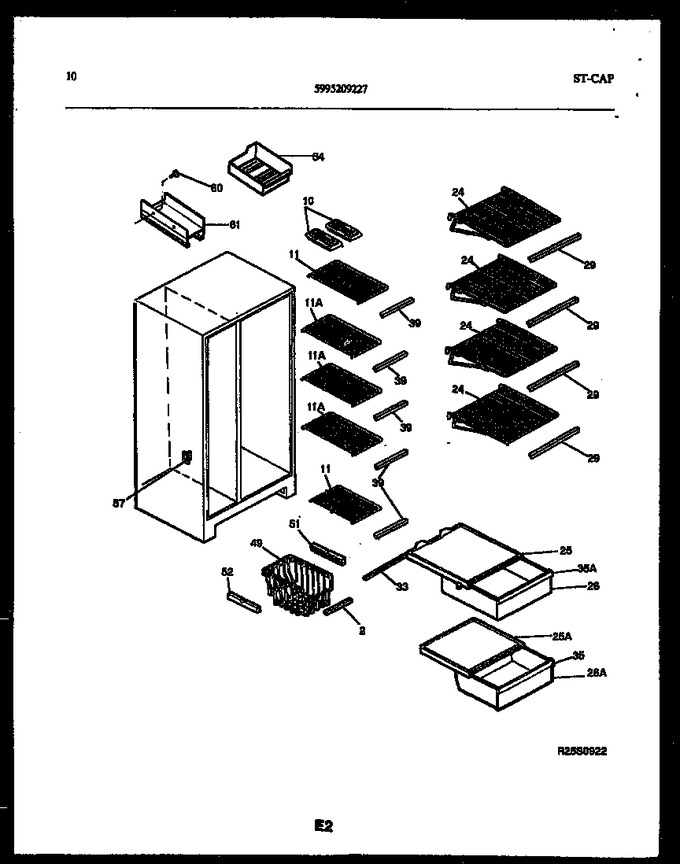

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3205569 | Trim-basket |
|
- | |||||
| 10 | 5318253601 | Tray-ice, Plastic, (2) |
|
- | |||||
| 11 | 5303007123 | Shelf - Freezer (2) |
|
- | |||||
| 24 | 5303272037 | Shelf-cantilever, Refr, (4) |
|
- | |||||
| 25 | 5308009642 | Cover-crisper Pan, Upper |
|
$ 163.55 | |||||
| 26 | 5303275349 | Pan-storage, Upper |
|
- | |||||
| 29 | 5303275418 | Trim-refr Shelf, Snap-on, Front, (4) |
|
- | |||||
| 33 | 5303205880 | Gasket-crisper Cover |
|
- | |||||
| 35 | 5303275339 | Trim-storage Pan, Lower |
|
- | |||||
| 39 | 5303275333 | Trim-frzr Shelf, (5) |
|
- | |||||
| 49 | 3017211 | Basket-sliding |
|
- | |||||
| 51 | 5303001098 | Hanger, Basket, Rh |
|
- | |||||
| 52 | 5303001099 | Hanger, Basket, Lh |
|
- | |||||
| 54 | 5303275404 | Container-ice |
|
- | |||||
| 57 | 5303271652 | Ferrule-outer |
|
- | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 61 | 08009824 | Compartment-ice Tray |
|
- | |||||
| *45425 | 5300170910 | Clip-cantilever Shlf |
|
$ 2.60 | |||||
| 11A | 5303007122 | Shelf-freezer, (3) |
|
- | |||||
| 25A | 5316972401 | Cover-crisper Pan, Lower |
|
- | |||||
| 26A | 5303275350 | Pan-storage, Lower |
|
- | |||||
| 35A | 5303275340 | Trim-storage Pan, Upper |
|
- |
