01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit-imkss1


06 - Shelves & Accessories


07 - Unit Compartment & System


08 - Wiring Information

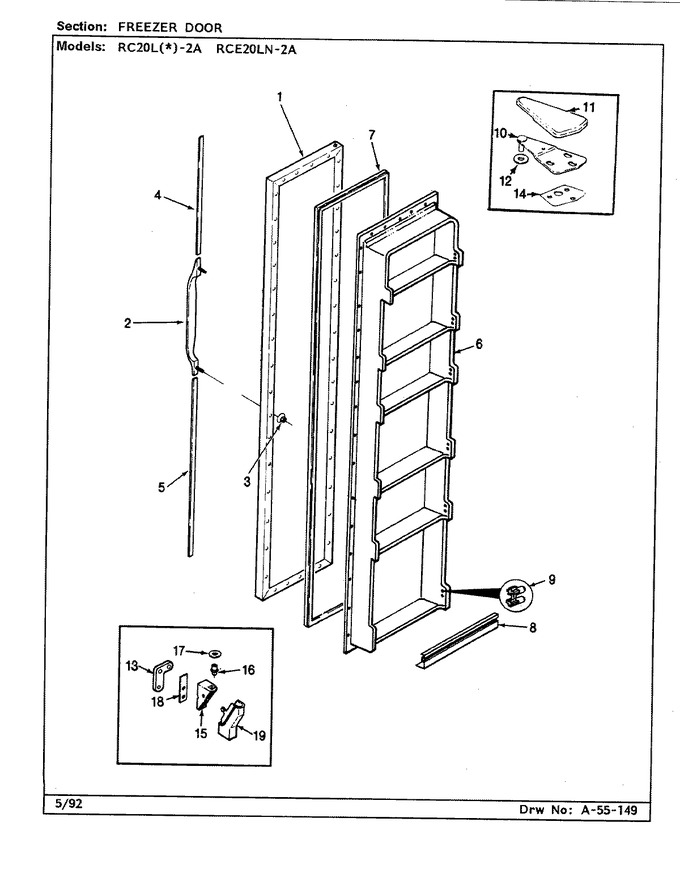

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72046-10-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	63686-3		Handle		Appelez-nous	-
3	434003-506		Fastener		Appelez-nous	-
4	68657-1		Trim		Appelez-nous	-
5	68657-2		Trim		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
6	59433-215		Inner Panel		Appelez-nous	-
7	66929-32		Gasket, Frz.		Appelez-nous	-
8	WP61003045		Trim, Door Shelf   (Replaces: 65151-3)				$ 129.55
9	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
10	53709-18		Door Hinge, Upper		Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
11	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
12	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
13	65275-59		Screw		Appelez-nous	-
13	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
14	65031-1		Shim, Upper Hinge		Appelez-nous	-
15	68975-2		Hinge, Lower		Appelez-nous	-
15	65275-51		Screw, Lower Hinge		Appelez-nous	-
16	68977-1		Pin, Hinge		Appelez-nous	-
17	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
18	69031-4		Shim		Appelez-nous	-
