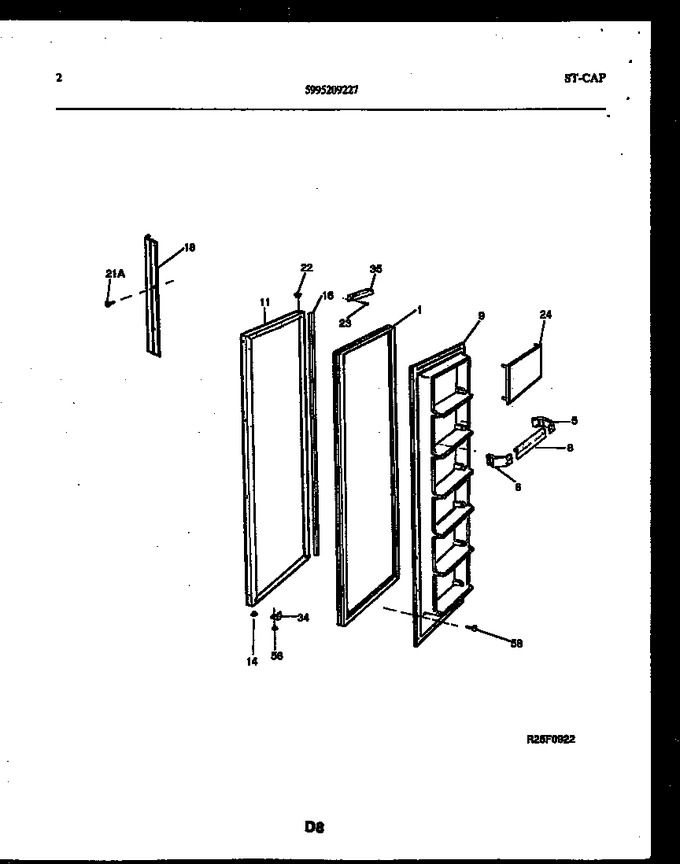

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200474 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 5 | 5303276010 | Support-door Rack, Rh, (5) |
|
- | |||||
| 6 | 5303276011 | Support-door Rack, Lh, (5) |
|
- | |||||
| 8 | 5303276419 | Rack-door, (5) |
|
- | |||||
| 9 | 5303276055 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 5303916981 | Panel-frzr Door, White |
|
- | |||||
| 14 | 5315230801 | Button Plug, Refr/fzr Door |
|
- | |||||
| 16 | 5303275365 | Trim-door |
|
- | |||||
| 18 | 5303275497 | Handle-door, Traditional Oak |
|
- | |||||
| 22 | 5303001022 | Bearing-hinge Upper |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 23 | 5303001020 | Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 24 | 5303275960 | Dispenser-juice Can |
|
- | |||||
| 34 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 35 | 5303200272 | Closer-door |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *45416 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
