SELECT A DIAGRAM

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Refrigerator Control Assembly, Damp


08 - System And Automatic Defrost Parts

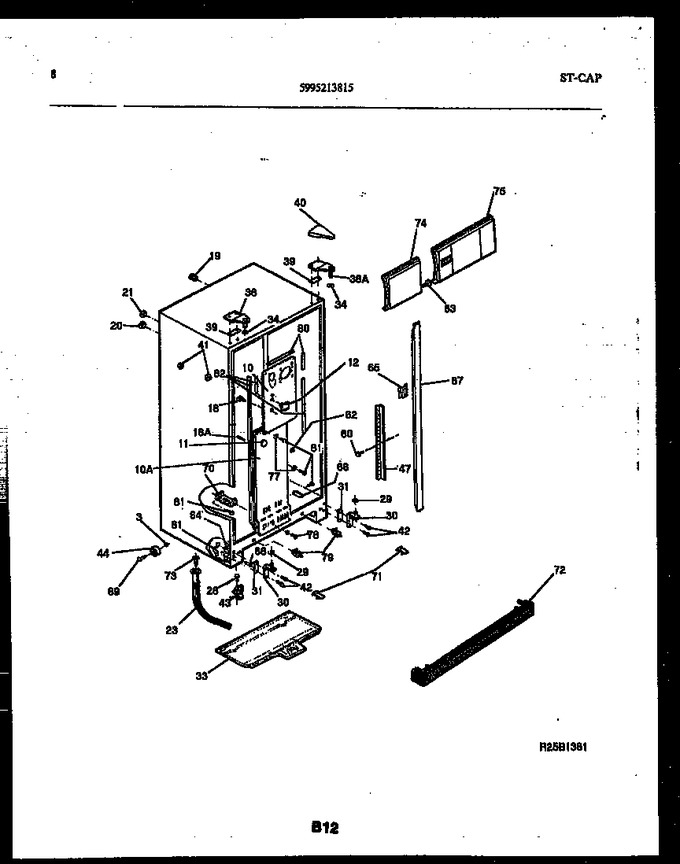

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
44	5303001030		Roller, Rear (2)				$ 17.80
47	5308002744		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
60	5308010253		Screw		Appelez-nous	-
61	5300077210		Nut, Stud Speed, .094, (2)		Appelez-nous	-
62	5303001231		Clip-grounding		Appelez-nous	-
63	5303001213		Support-light Shield, (4)		Appelez-nous	-
64	5303001273		Nut-special Twin (4)		Appelez-nous	-
65	5303001281		Clip-mullion Mtg, (3)		Appelez-nous	-
66	08017447		Damper-meat Keeper		Appelez-nous	-
67	5303916448		Mullion, Almond		Appelez-nous	-
68	5308000013		Pin, Shoulder, 3/32 X 5/8, (2)		Appelez-nous	-
69	5308000266		Pin, Roller (2)		Appelez-nous	-
70	5308000738		Bracket-cover Mtg		Appelez-nous	-
71	5308000847		Clip-grille				$ 5.39
72	3200661		Grille/kickplate				$ 22.35
73	5308000853		Conductor-heat		Appelez-nous	-
74	5303275302		Shield-light, Freezer		Appelez-nous	-
75	5303275430		Shield-light, Refrigerator		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
79	5309918810		Switch-light		Appelez-nous	-
80	5303001219		Gasket-coil Cover (2)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
82	5303001233		Gasket Kit, Coil Cover		Appelez-nous	-
*45983	5308016571		Plug-button, Liner				$ 4.79
*45983	5308017046		Clip-wiring Harness		Appelez-nous	-
65A	5300169100		Clip-mullion Mtg, (3) (non-illustrated)		Appelez-nous	-
78A	5308009617		Washer, Ext Tooth Lock, No. 10 (non-illustrated)		Appelez-nous	-
79A	08009775		Clip-cable, Light Switch (non-illustrated)		Appelez-nous	-
