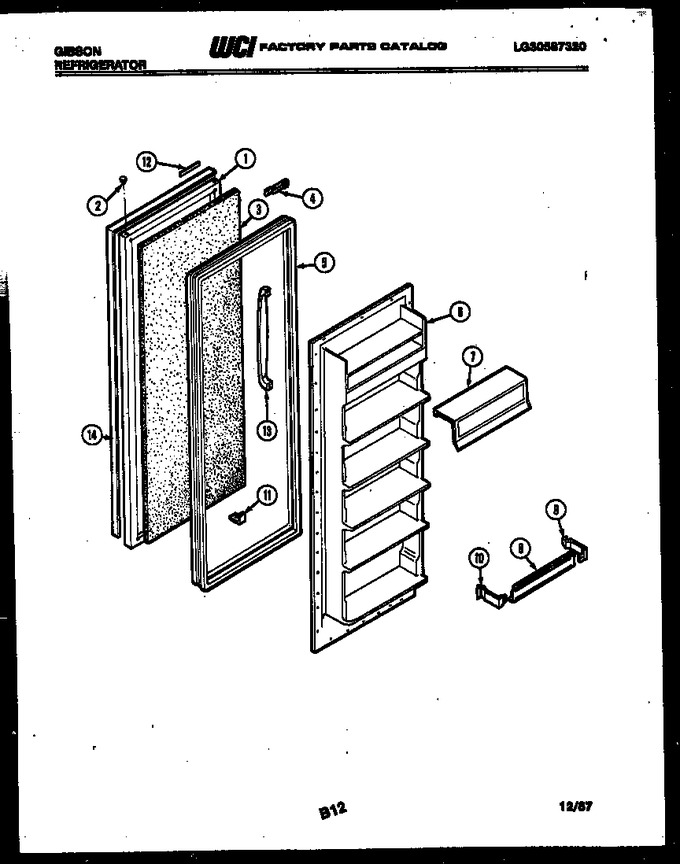

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G177745-09		Refr Door-weat		Appelez-nous	-
1	G177745-10		Refr Door-cofe		Appelez-nous	-
1	G177745-11		Refr Door-almd		Appelez-nous	-
1	G177745		Refr Door-wht		Appelez-nous	-
1	G177745-08		Refr Door-avoc		Appelez-nous	-
2	G183139		Hinge Bearing-upr		Appelez-nous	-
3	G89643		Insulation (bulk)		Appelez-nous	-
4	G161119		Door Closer		Appelez-nous	-
5	G180551-02		Gasket-refr Door		Appelez-nous	-
6	3015088		Door Panel, Inner		Appelez-nous	-
7	3015087		Dairy Door (2)		Appelez-nous	-
8	G490079-33		Door Rack (5)		Appelez-nous	-
9	G179946-02		Support-rs (5)		Appelez-nous	-
10	G179947-02		Support-ls (5)		Appelez-nous	-
11	G165376		Bumper-light Sw.		Appelez-nous	-
12	G175117-02		Nameplate-frame		Appelez-nous	-
13	G163552-01		Door Handle		Appelez-nous	-
14	G167404-08		Trim-refr Door		Appelez-nous	-
11A	G162585		Screw		Appelez-nous	-
12A	G153407-60		Tape-mtg (non-illustrated)		Appelez-nous	-
12B	G188378-06		Label-upr (non-illustrated)		Appelez-nous	-
12C	G175393-01		Label-lwr (non-illustrated)		Appelez-nous	-
13A	G185565		Screw-mtg (2) (non-illustrated)		Appelez-nous	-
13B	G176752		Shim-handle (2) (non-illustrated)		Appelez-nous	-
13C	161863		Anchor Nut (2) (non-illustrated)		Appelez-nous	-
1A	G152308-01		Door Plug-btm (non-illustrated)		Appelez-nous	-
2A	G183138		Hinge Bearing-lwr (non-illustrated)		Appelez-nous	-
4A	G169729		Screw-mtg (non-illustrated)		Appelez-nous	-
6A	G162585		Screw		Appelez-nous	-
