Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4161659 Cover, Wiring Harness Appelez-nous -
2 4159513 Washer Appelez-nous -
3 WP693304 Screw, 10-16 X 1/2   (Replaces: 4159390) Special Order $ 7.04

4 4161613 Latch Mechanism Assembly Appelez-nous -
5 4162145 Insulation, Switch Appelez-nous -
6 4162508 Inner Door Assembly Appelez-nous -
7 4159594 Washer (rubber) Appelez-nous -
8 4159275 Screw, 10-32 X 5/16 Appelez-nous -
9 4161592 Bracket, L.h. Door Stop Appelez-nous -
10 4159121 Plug Button Appelez-nous -
11 4160355 Bearing, Door Stop Insert (2) Special Order $ 7.71

12 4162949 Vapor Barrier, Inner Door (includes Item No. 41) Appelez-nous -
13 4161957 Bracket, Spring Mounting (l.h.) Appelez-nous -
13 4161958 Bracket, Spring Mounting (r.h.) Appelez-nous -
15 WP3390631 Screw, 10-32 X 3/8   (Replaces: 4159184) Special Order $ 7.04

16 4161594 Bracket, R.h. Door Stop Appelez-nous -
19 4161587 Bracket, R.h. Hinge Special Order $ 77.90

20 WP4171237 Spring, Door Counterbalance (2)   (Replaces: 4171237) Special Order $ 32.04

21 4161563 Pin, Hinge Appelez-nous -
22 4161585 Clip, Hinge Pin Retaining Appelez-nous -
23 4162113 Screw Appelez-nous -
24 4171447 Seal, Detergent Dispenser Special Order $ 8.48

25 4159373 Screw, 8-18 X 1/2 Appelez-nous -
26 4162568 Bimetal Assembly Special Order $ 45.13

27 4161295 Baffle, Lower Special Order $ 38.85

28 W11233072 Screw, 8-18 X 1/2   (Replaces: 4159397) In-Stock Immediately $ 12.62

30 9740170 Detergent Dispenser & Gasket Assembly (115 V., 60 Hz.) (includes Item 24) Appelez-nous -
32 4159594 Washer (rubber) Appelez-nous -
33 4162151 Screw, 10-32 X 1/2 Appelez-nous -
34 4171221 Fill Hole Plug Assembly (includes Item 35) Special Order $ 23.04

35 4162496 Washer, Fill Hole Plug Special Order $ 36.50

36 4171300 Nut, Rinse Agent Dispenser Special Order $ 34.65

37 4161545 Gasket, Rinse Agent Dispenser Appelez-nous -
38 4171217 Rinse Agent Dispensing Valve Appelez-nous -
39 4161589 Bracket, L.h. Hinge Appelez-nous -
41 4162950 Vapor Barrier, Corner (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

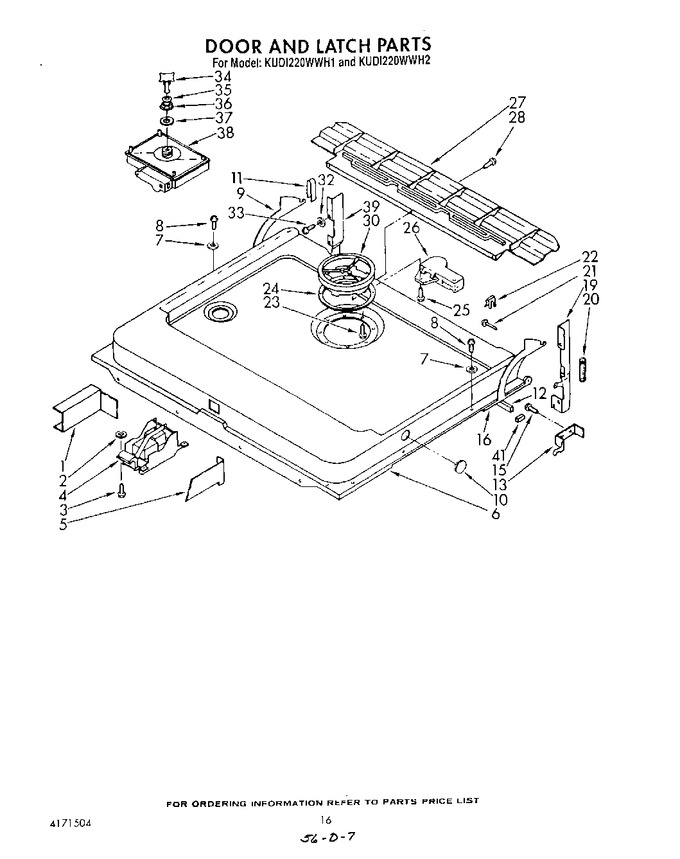

Diagram for KUDI220WWH2
