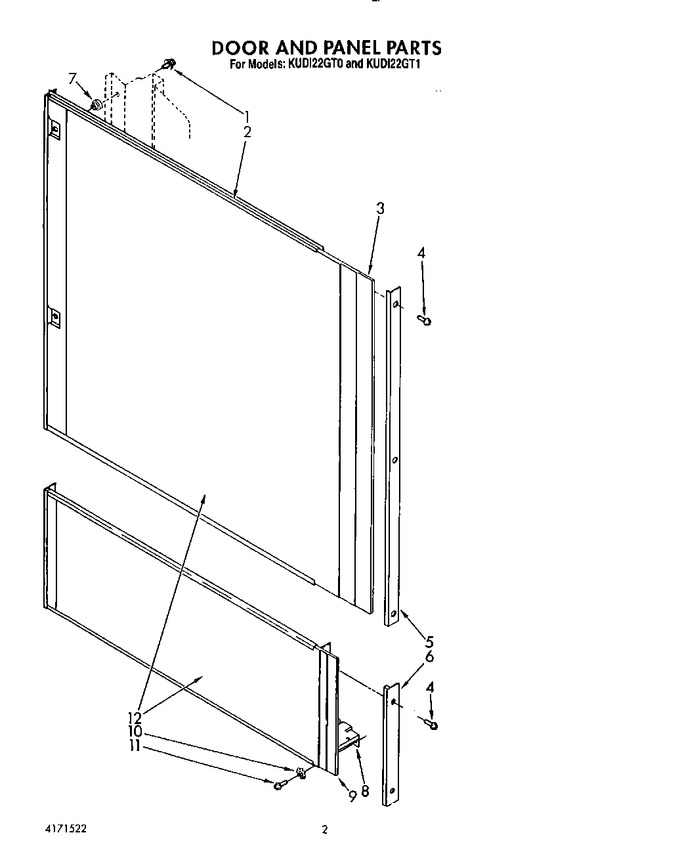

02 - Door And Panel


03 - Blower


04 - Control Panel, Lit/optional


05 - Pump And Motor


06 - Lower Washarm And Strainer


07 - Heater


08 - Fill And Overfill


09 - Upper Wash And Rinse


10 - Frame And Tank


11 - Upper Rack And Track


12 - Lower Rack


13 - Door And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4162215		Screw		Appelez-nous	-
2	4162736		Upper Mounting Panel Assembly (includes Upper & Lower Trim)		Appelez-nous	-
3	4162733		Filler (upper Panel)		Appelez-nous	-
4	4159439		Screw, 6 X 1/4		Appelez-nous	-
5	4162685		Side Trim (upper Panel)		Appelez-nous	-
6	4162686		Side Trim (lower Panel)		Appelez-nous	-
7	4162735		Grommet		Appelez-nous	-
8	4162737		Lower Mounting Panel Assembly (includes Upper & Lower Trim)		Appelez-nous	-
9	4162734		Filler (lower Panel)		Appelez-nous	-
10	4159494		Lock Washer		Appelez-nous	-
11	WP693304		Screw, 10 X 1/2   (Replaces: 4159390)				$ 7.04
12	4169404		Panel Insert Kits (silver/onyx Black)		Appelez-nous	-
12	4169403		Panel Insert Kits (sand/onyx Black)		Appelez-nous	-
12	4171534		Panel Insert Kits (almond/black)		Appelez-nous	-
12	4162836		Panel Insert Kits (almond/white Optional Kits)		Appelez-nous	-
12	4171096		Panel Insert Kits (harvest Gold/onyx Black)		Appelez-nous	-
12	4162835		Panel Insert Kits (fresh Avocado/ Coffee)		Appelez-nous	-
12	4169400		Panel Insert Kits (stainless Steel)				$ 125.57
12	4169402		Panel Insert Kits (platinum/toast (optional))		Appelez-nous	-
