01 - Body

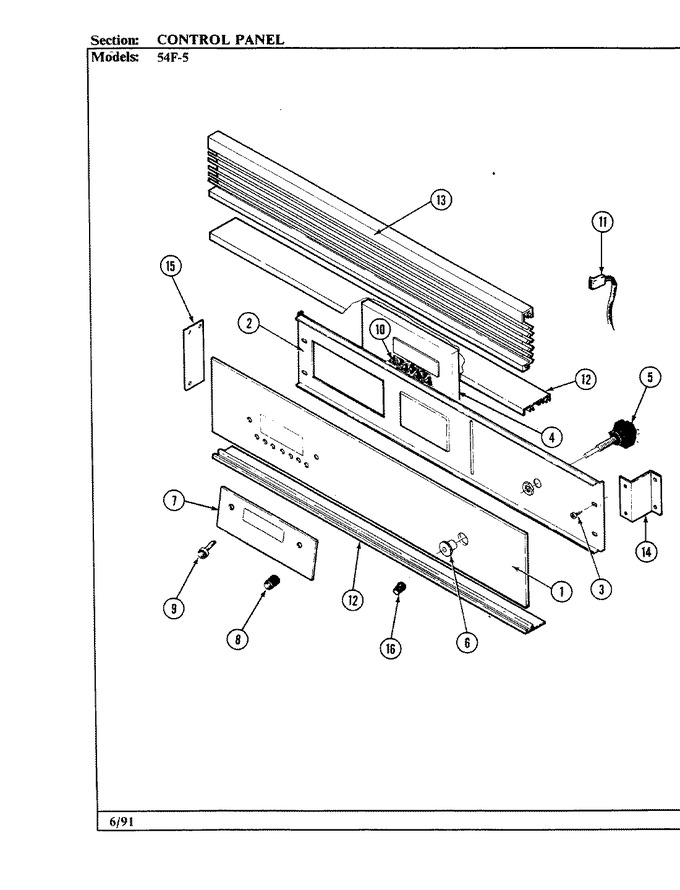

02 - Control Panel
03 - Gas Controls
04 - Internal Controls
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7912P050-60 | Glass, Control (vw) | 01 |
|
- | ||||
| 2 | 3605F173-80 | Plate, Mtg Switch | 01 |
|
- | ||||
| 3 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 4 | 7601P176-60 | Clock, Electronic | 01 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 5 | 7403P019-60 | Switch, Light | 01 |
|
- | ||||
| 6 | 7214P016-60 | Sleeve, Switch | 01 |
|
- | ||||
| 7 | 7740P016-60 | Trim, Bezel | 01 |
|
- | ||||
| 8 | 7711P419-60 | Knob, Clock (wht) | 01 |
|
- | ||||
| 9 | 7711P453-60 | Button, Ctrl Set | 01 |
|
- | ||||
| 10 | 7711P453-60 | Button, Ctrl Set | 01 |
|
- | ||||
| 11 | 5170P094-60 | Wire Harness | 01 |
|
- | ||||
| 12 | 7756P042-60 | Extrusion | 01 |
|
- | ||||
| 13 | 7756P051-60 | Extrusion Top | 01 |
|
- | ||||
| 13 | 7756P044-60 | Extrusion (top) | 01 |
|
- | ||||
| 14 | 3807F397-80 | Support Swtich Mtg | 01 |
|
- | ||||
| 15 | 7726P023-60 | Trim, End Cap | 01 |
|
- | ||||
| 15 | 7726P028-60 | Trim, End Cap | 01 |
|
- | ||||
| 16 | 7711P008-60 | Knob, Light Switch | 01 |
|
- | ||||
| 16 | 7711P421-60 | Handle, Light Switch | 01 |
|
- |
