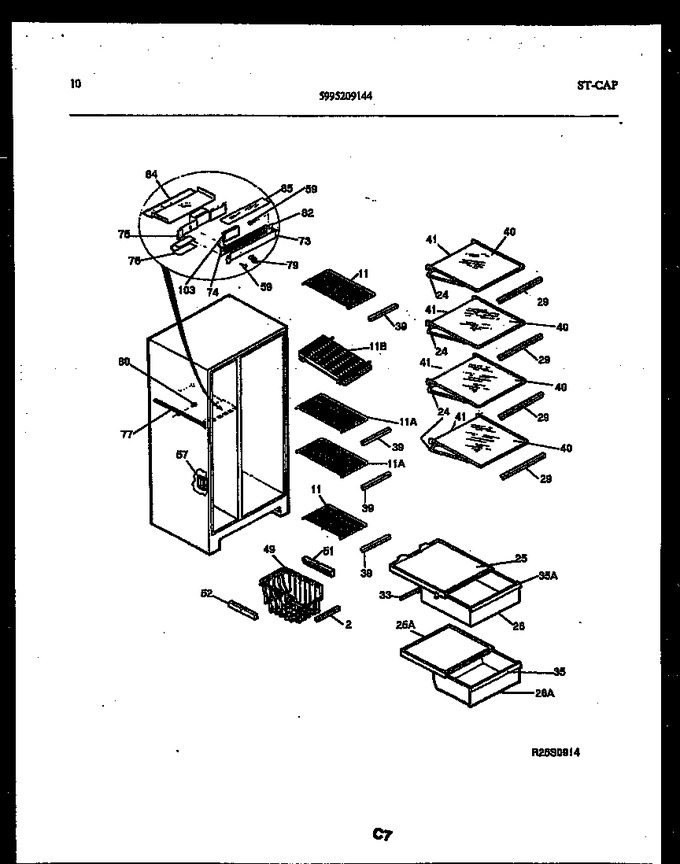

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3205569 | Trim-basket |
|
- | |||||
| 11 | 5303007122 | Shelf - Freezer (2) |
|
- | |||||
| 24 | 5303272461 | Frame-full Shelf, Cantilever, (4) |
|
- | |||||
| 25 | 5308009642 | Cover-crisper Pan, Upper |
|
$ 163.55 | |||||
| 26 | 5303275349 | Pan-storage, Upper |
|
- | |||||
| 29 | 5303275418 | Trim-full Shelf, Snap-on, Front, (4) |
|
- | |||||
| 33 | 5303205880 | Gasket-crisper Cover |
|
- | |||||
| 35 | 5303275339 | Trim-storage Pan, Lower |
|
- | |||||
| 39 | 5303275333 | Trim-frzr Shelf, (4) |
|
- | |||||
| 40 | 5303275424 | Shelf-glass, (4) |
|
- | |||||
| 41 | 5303211974 | Trim-full Shelf, Snap-on, Rear, (4) |
|
- | |||||
| 49 | 3017211 | Basket-sliding |
|
- | |||||
| 51 | 5303001098 | Hanger, Basket, Rh |
|
- | |||||
| 52 | 5303001099 | Hanger, Basket, Lh |
|
- | |||||
| 57 | 5303271652 | Ferrule-outer |
|
- | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 73 | 08002799 | Mullion-wheat |
|
- | |||||
| 74 | 5300176611 | Heater-mullion |
|
- | |||||
| 75 | 08002793 | Strap-light Mounting |
|
- | |||||
| 11A | 5303007123 | Shelf - Freezer (2) |
|
- | |||||
| 11B | 5308001016 | Shelf-freezer Plastic |
|
- | |||||
| 25A | 5316972401 | Cover-crisper Pan, Lower |
|
- | |||||
| 26A | 5303275350 | Pan-storage, Lower |
|
- | |||||
| 29A | 5303209742 | Retainer-glass, (4) (non-illustrated) |
|
- | |||||
| 35A | 5303275340 | Trim-storage Pan, Upper |
|
- | |||||
| 41A | 5303211351 | Lock-rear Trim (non-illustrated) |
|
- |
