| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
5308017048 |
|
Inlet & Pilot Tube Assy |
|
Appelez-nous
|
- |
|
|
|
| 2 |
5303001066 |
|
Grommet-water Tube |
|
Appelez-nous
|
- |
|
|
|
| 3 |
5308015588 |
|
Heater-door Housing |
|
Appelez-nous
|
- |
|
|
|
| 4 |
5303211442 |
|
Housing-frzr Dr Pnl |
|
Appelez-nous
|
- |
|
|
|
| 5 |
5308010326 |
|
Clamp-water Tube |
|
Appelez-nous
|
- |
|
|
|
| 6 |
5303001073 |
|
Screw, Cr Pan Hd Typ25, 4-24 X 3/4, Switch Mtg, (4) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
5300185542 |
|
Switch-solenoid (2) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
5303204878 |
|
Plate-switch Mtg Cvr |
|
Appelez-nous
|
- |
|
|
|
| 10 |
5303001072 |
|
Spring-wtr Actuator |
|
Appelez-nous
|
- |
|
|
|
| 11 |
5303001077 |
|
Actuator-water |
|
Appelez-nous
|
- |
|
|
|
| 12 |
5303279516 |
|
Button-i&w Actuator, (2) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
5302832214 |
|
Clip - Water Actuator |
|
Appelez-nous
|
- |
|
|
|
| 14 |
5303276710 |
|
Label-dec Frnt Pnl |
|
Appelez-nous
|
- |
|
|
|
| 15 |
5300187180 |
|
Light Bulb/lamp |
|
Appelez-nous
|
- |
|
|
|
| 16 |
5303001076 |
|
Socket-light/lamp |
|
Appelez-nous
|
- |
|
|
|
| 17 |
5303001081 |
|
Screw-adjusting |
|
Appelez-nous
|
- |
|
|
|
| 18 |
3001075 |
|
Actuator-ice, W/suction Cup |
|
Appelez-nous
|
- |
|
|
|
| 22 |
5303015822 |
|
Label-fill Pads, (2) |
|
Appelez-nous
|
- |
|
|
|
| 23 |
5303015823 |
|
Grid-water Spill |
|
Appelez-nous
|
- |
|
|
|
| 24 |
5318000402 |
|
Skirt-ice Deflector |
|
Appelez-nous
|
- |
|
|
|
| 26 |
5303001082 |
|
Wiring Harness-freezer Door |
|
Appelez-nous
|
- |
|
|
|
| 27 |
5303001047 |
|
Plug-housing, Harness Bottom |
|
Appelez-nous
|
- |
|
|
|
| 28 |
5303279539 |
|
Panel, Decorative Frnt |
|
Appelez-nous
|
- |
|
|
|
| 61 |
5308017047 |
|
Nut, Self-threading, 1/8 |
|
Appelez-nous
|
- |
|
|
|
| 82 |
5303001083 |
|
Screw, Tw Hx Cr Pan Hd, 8-16-1/2 |
|
Appelez-nous
|
- |
|
|
|

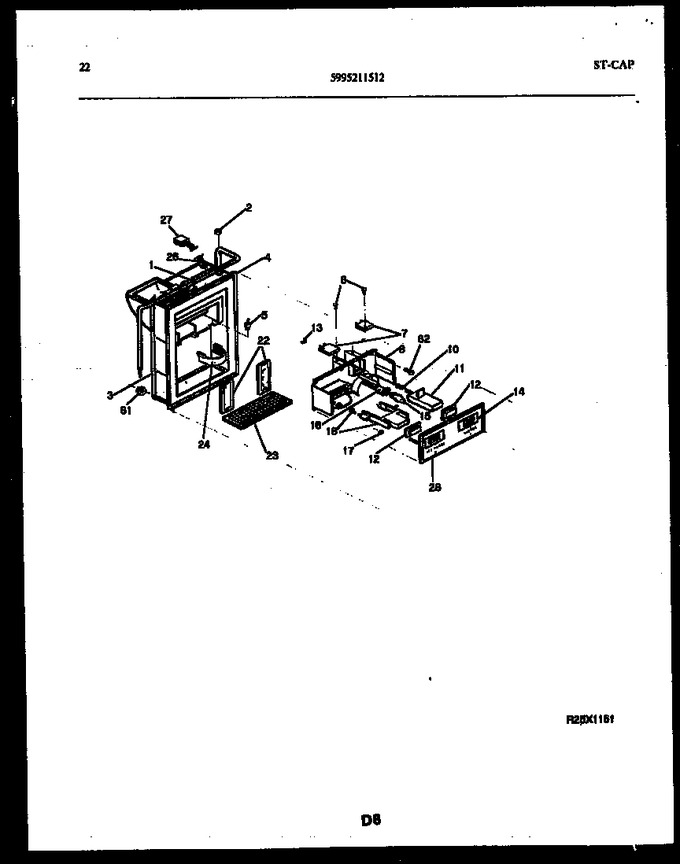

View Diagram in Separate Window
