SELECT A DIAGRAM

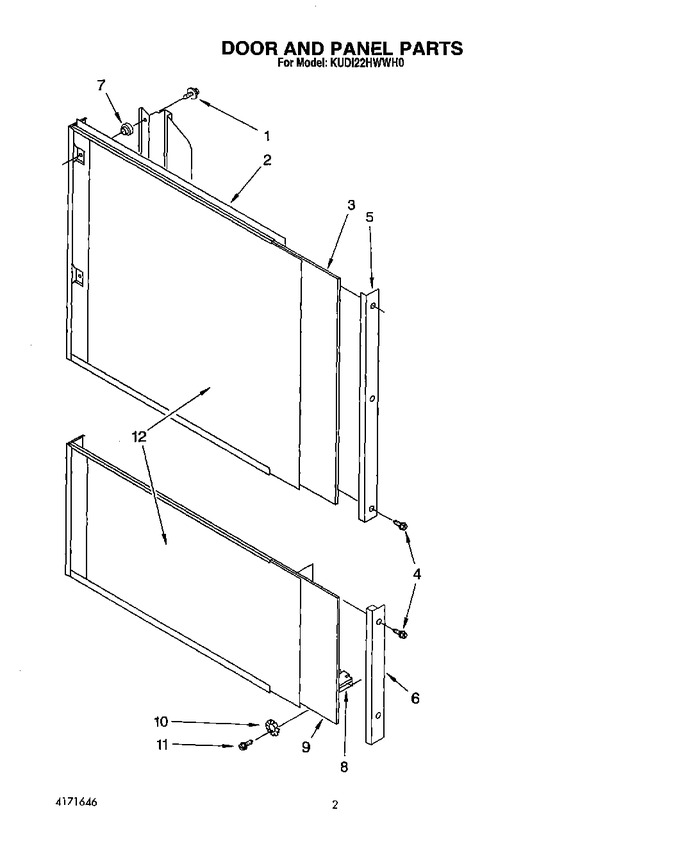

02 - Door And Panel


03 - Blower


04 - Control Panel, Lit/optional


05 - Pump And Motor


06 - Lower Washarm And Strainer


07 - Heater


08 - Fill And Overfill


09 - Upper Wash And Rinse


10 - Frame And Tank


11 - Upper Rack And Track


12 - Lower Rack


13 - Door And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4162215		Screw		Appelez-nous	-
2	4171500		Upper Mounting Panel Assembly (includes Upper & Lower Trim)		Appelez-nous	-
3	4171462		Filler (upper Panel)		Appelez-nous	-
4	4171463		Screw (10)		Appelez-nous	-
5	4171497		Side Trim (upper Panel)		Appelez-nous	-
6	4171496		Side Trim (lower Panel)		Appelez-nous	-
7	4162735		Grommet, Panel		Appelez-nous	-
8	4171501		Lower Mounting Panel Assembly (includes Upper & Lower Trim)		Appelez-nous	-
9	4171464		Filler (lower Panel)		Appelez-nous	-
10	4159494		Lock Washer		Appelez-nous	-
11	4169421		Screw		Appelez-nous	-
12	4169404		Panel Insert Kits (silver/onyx Black)		Appelez-nous	-
12	4169402		Panel Insert Kits (platinum/toast)		Appelez-nous	-
12	4169403		Panel Insert Kits (sand/onyx Black)		Appelez-nous	-
12	4162834		Panel Insert Kits (harvest Gold/almond)		Appelez-nous	-
12	4171534		Panel Insert Kits (almond/black)		Appelez-nous	-
12	4162836		Panel Insert Kits (almond/white)		Appelez-nous	-
12	4162833		Panel Insert Kits (white/black)		Appelez-nous	-
12	4171096		Panel Insert Kits (harvest Gold/onyx Black)		Appelez-nous	-
12	4162835		Panel Insert Kits (fresh Avocado/ Coffee)		Appelez-nous	-
12	4169400		Panel Insert Kits (stainless Steel)				$ 125.57

    View Diagram in Separate Window       Print Part List
