| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 47 |
5308002744 |
|
Channel-shelf Mtg, Side, (2) |
|
Appelez-nous
|
- |
|
|
|
| 48 |
5308000200 |
|
Nut, 7/16 X 20, Nylon |
|
Appelez-nous
|
- |
|
|
|
| 60 |
5308010253 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 61 |
5300077210 |
|
Nut, Stud Speed, .094, (2) |
|
Appelez-nous
|
- |
|
|
|
| 62 |
5303001231 |
|
Clip-grounding |
|
Appelez-nous
|
- |
|
|
|
| 64 |
5303001273 |
|
Nut-special Twin (4) |
|
Appelez-nous
|
- |
|
|
|
| 65 |
5303001281 |
|
Clip-mullion Mtg, (3) |
|
Appelez-nous
|
- |
|
|
|
| 66 |
08017447 |
|
Damper-meat Keeper |
|
Appelez-nous
|
- |
|
|
|
| 67 |
5303916444 |
|
Mullion-white |
|
Appelez-nous
|
- |
|
|
|
| 68 |
5308000013 |
|
Pin, Shoulder, 3/32 X 5/8, (2) |
|
Appelez-nous
|
- |
|
|
|
| 70 |
5308000738 |
|
Bracket-cover Mtg |
|
Appelez-nous
|
- |
|
|
|
| 71 |
5308000847 |
 |
Clip-grille |
|
|
|
$ 5.39 |
|
|
| 72 |
5303200752 |
|
Grille/kickplate |
|
Appelez-nous
|
- |
|
|
|
| 73 |
5308000853 |
|
Conductor-heat |
|
Appelez-nous
|
- |
|
|
|
| 74 |
5303279537 |
|
Shield-light, Freezer |
|
Appelez-nous
|
- |
|
|
|
| 75 |
5303275430 |
|
Shield-light, Refrigerator |
|
Appelez-nous
|
- |
|
|
|
| 77 |
5303001216 |
|
Washer-nylon,3/16 X 5/8 Od |
|
Appelez-nous
|
- |
|
|
|
| 78 |
5303274237 |
|
Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
Appelez-nous
|
- |
|
|
|
| 79 |
5309918810 |
|
Switch-light |
|
Appelez-nous
|
- |
|
|
|
| 80 |
5303001219 |
|
Gasket-coil Cover (2) |
|
Appelez-nous
|
- |
|
|
|
| 81 |
5304455650 |
 |
Screw (Replaces: 5308016566) |
|
|
|
$ 14.18 |
|
|
| 82 |
5304455650 |
|
Screw (Replaces: 5308016566) |
|
|
|
$ 14.18 |
|
|
| 84 |
5308010289 |
|
Elbow-water Tube |
|
|
|
$ 45.84 |
|
|
| 85 |
5317465801 |
|
Cover-lower Hinge |
|
Appelez-nous
|
- |
|
|
|
| *38886 |
5308010292 |
|
Screw-btm Hinge Cvr, Lr Pan Head, 10-12 A 5/8 |
|
Appelez-nous
|
- |
|
|
|
| *38887 |
5308010293 |
|
Nut-btm Hinge Cvr, Push-in |
|
Appelez-nous
|
- |
|
|
|
| *38887 |
5308017046 |
|
Clip-wiring Harness |
|
Appelez-nous
|
- |
|
|
|
| 65A |
5300169100 |
|
Clip-mullion Mtg, (3) (non-illustrated) |
|
Appelez-nous
|
- |
|
|
|
| 78A |
5308009617 |
|
Washer, Ext Tooth Lock, No. 10 (non-illustrated) |
|
Appelez-nous
|
- |
|
|
|
| 79A |
08009775 |
|
Clip-cable, Light Switch (non-illustrated) |
|
Appelez-nous
|
- |
|
|
|

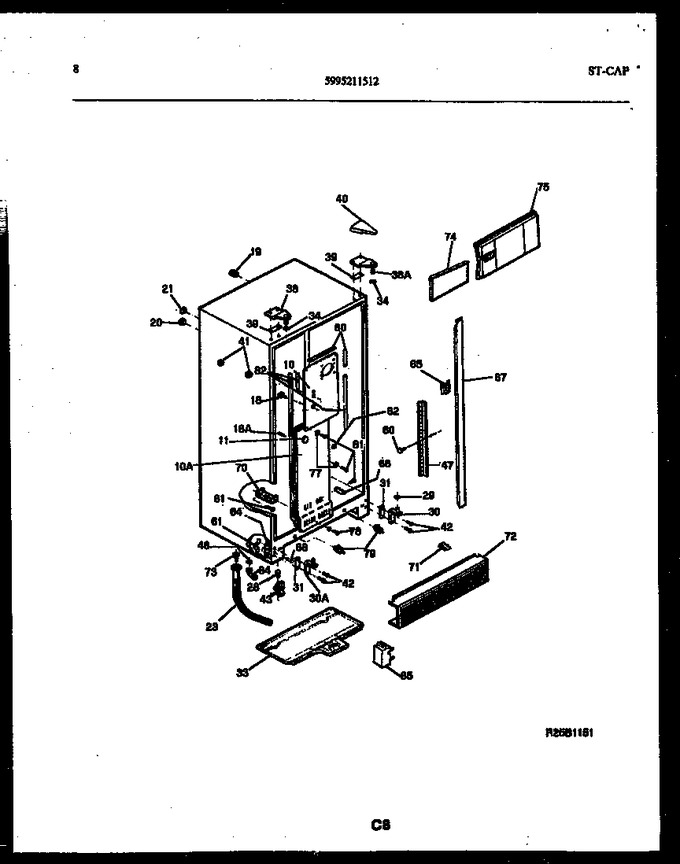

View Diagram in Separate Window
