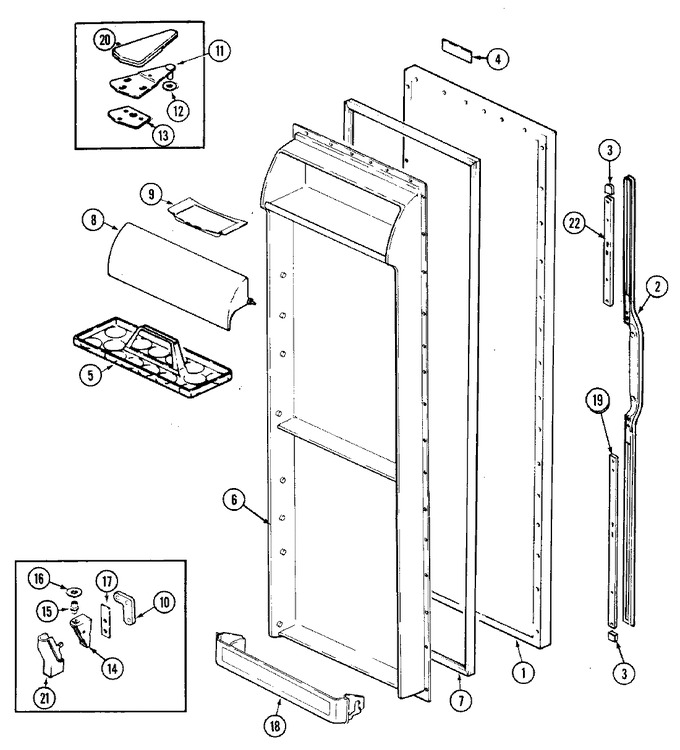

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72341-2-AM | Panel, F.f. Door (alm) | 10 |
|
- | ||||
| 2 | 495034-900 | Plug Button, Door | 10 |
|
- | ||||
| 2 | 12000043 | Kit, Handle Assy (almond) | 10 |
|
- | ||||
| 2 | 12000052 | Kit, Handle Assy. (alm) | 11 |
|
- | ||||
| 2 | W10856122 | Screw (Replaces: 65275-65) | 10 |
|
$ 6.98 | ||||
| 2 | 69477-1 | Clip | 10 |
|
- | ||||
| 3 | 69590-1 | End Cap, Handle | 10 |
|
- | ||||
| 4 | 66982-32 | Nameplate (alm) | 10 |
|
- | ||||
| 5 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 6 | 69242-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 6 | 65275-5 | Screw | 10 |
|
- | ||||
| 7 | 70024-4 | Gasket, F.f. Door (wht) | 10 |
|
$ 184.29 | ||||
| 8 | 66184-394 | Door, Dairy | 10 |
|
- | ||||
| 9 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 10 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 10 | 65275-59 | Screw | 10 |
|
- | ||||
| 11 | WP3-24838-048 | Screw, Upper Hinge (Replaces: 65275-86) | 10 |
|
$ 7.00 | ||||
| 11 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 12 | WP52185-1 | Washer (Replaces: 52185-1) | 10 |
|
Immediately | $ 9.47 | |||
| 13 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 14 | 69516-4 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 14 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 15 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 16 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 17 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 18 | 69871-6 | Front, Pick-off | 10 |
|
- | ||||
| 19 | 69586-4 | Trim, Handle Ext. (lower) | 10 |
|
- | ||||
| 20 | 70121-3 | Cover, Upper Hinge (alm) | 10 |
|
- | ||||
| 21 | 68978-3 | Cover, Lower Hinge (alm) | 10 |
|
- | ||||
| 22 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 22 | 69261-1 | Bracket, Closer | 10 |
|
- | ||||
| 22 | 69586-3 | Trim, Handle Ext. (upper) | 10 |
|
- | ||||
| 22 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 22 | 70049-1 | Insulation Door | 10 |
|
- |
