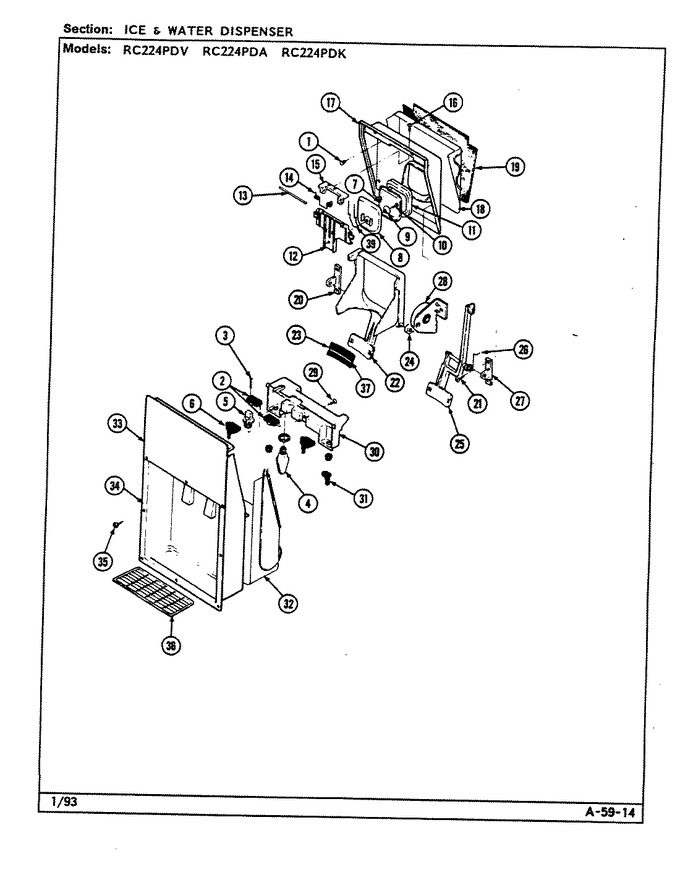

03 - Ice & Water Dispenser
04 - Ice Maker & Bin
05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 28272-6 | Bumper, Door |
|
- | |||||
| 2 | 55440-2 | Switch, Ice & Water |
|
$ 11.94 | |||||
| 3 | 405071-1 | Screw |
|
- | |||||
| 4 | W10857122 | Bulb, Light (Replaces: 63179-1) |
|
$ 12.45 | |||||
| 5 | 67293-1 | Socket, Light (w/nut) |
|
- | |||||
| 6 | 68491-1 | Wire Harness, Switch |
|
- | |||||
| 6 | 27116-2 | Wire Nut |
|
- | |||||
| 6 | 67340-1 | Switch, Push |
|
- | |||||
| 7 | 68557-1 | Insulation, Ice Door |
|
- | |||||
| 8 | 68565-1 | Door, Ice |
|
- | |||||
| 8 | 69065-9 | Tank, Water |
|
- | |||||
| 9 | 68566-1 | Retainer |
|
- | |||||
| 10 | 405116-103 | Screw |
|
- | |||||
| 11 | 68560-2 | Seal |
|
- | |||||
| 12 | 68563-1 | Strike, Door |
|
- | |||||
| 13 | 68564-1 | Shaft |
|
- | |||||
| 14 | 68765-1 | Spring |
|
- | |||||
| 15 | 68562-1 | Bracket |
|
- | |||||
| 16 | 405024-103 | Screw |
|
- | |||||
| 17 | WP1163283 | Screw (Replaces: 405025-103) |
|
$ 6.47 | |||||
| 17 | 68567-2 | Back, Fountain (wht) |
|
- | |||||
| 18 | 68936-1 | Heater, Fountain |
|
- | |||||
| 19 | 68714-1 | Insulation, Foil |
|
- | |||||
| 20 | 68627-1 | Pivot, Actuator (lt) |
|
- | |||||
| 21 | 405024-103 | Screw |
|
- | |||||
| 22 | 69112-2 | Paddle, Ice (wht) |
|
- | |||||
| 23 | 69174-2 | Pad, Paddle (wht) |
|
- | |||||
| 24 | 68764-1 | Pivot, Actuator (center) |
|
- | |||||
| 25 | 68558-2 | Paddle, Water (wht) |
|
- | |||||
| 26 | 68767-1 | Spring, Paddle Return |
|
- | |||||
| 27 | 68628-1 | Pivot, Actuator (rt)---na |
|
- | |||||
| 28 | 68827-1 | Motor, Inertia |
|
- | |||||
| 28 | WP1163283 | Screw (Replaces: 405025-103) |
|
$ 6.47 | |||||
| 29 | WP1163283 | Screw (Replaces: 405025-103) |
|
$ 6.47 | |||||
| 30 | 68626-1 | Bracket |
|
- | |||||
| 31 | 68568-1 | Plunger |
|
- | |||||
| 32 | 68820-1 | Heater Fountain |
|
- | |||||
| 33 | 68625-1 | Fountain Front |
|
- | |||||
| 34 | 68954-2 | Fountain (wht) |
|
- | |||||
| 35 | WP1163283 | Screw (Replaces: 405025-103) |
|
$ 6.47 | |||||
| 36 | 68631-1 | Grill |
|
- | |||||
| 37 | 68763-1 | Trim, Paddle Pad |
|
$ 5.04 | |||||
| 38 | Y00000000 | See Note Not Used In This Model |
|
- | |||||
| 39 | 69868-1 | Spring, Ice Door |
|
- |
