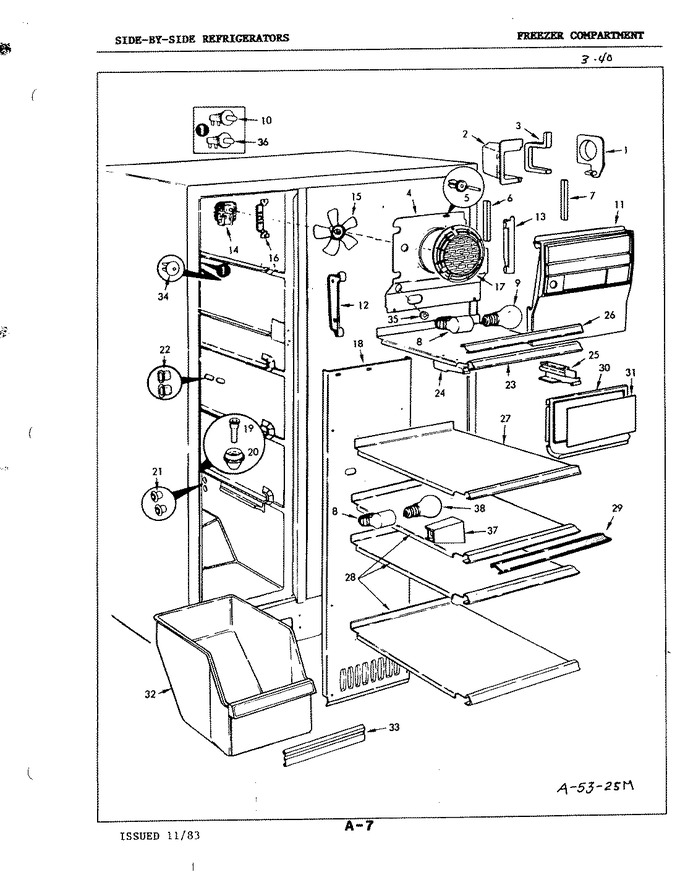

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Ice Cream Maker
06 - Unit Compartment & System
07 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54423-1 | Orifice |
|
- | |||||
| 2 | 53837-1 | Shield |
|
- | |||||
| 3 | 52077-10 | Seal |
|
- | |||||
| 4 | 400015-1 | Screw |
|
- | |||||
| 4 | 62690-35 | Cover, Coil |
|
- | |||||
| 5 | 59920-1 | Stud, Mounting Coil Cover |
|
- | |||||
| 6 | 52077-19 | Seal,upper Coil Cover To Liner |
|
- | |||||
| 7 | 52824-6 | Coil Seal |
|
- | |||||
| 8 | 29814-2 | Receptacle, Light |
|
- | |||||
| 9 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 10 | 56432-2 | Switch |
|
- | |||||
| 11 | 54321-22 | Shield |
|
- | |||||
| 12 | 53687-2 | Support |
|
- | |||||
| 13 | 54424-2 | Support |
|
- | |||||
| 14 | 56488-3 | Motor, Fan Freezer |
|
- | |||||
| 15 | 52120-1 | Blade, Fan Frzr. |
|
- | |||||
| 16 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 17 | 62689-1 | Fan Grid |
|
- | |||||
| 17 | WP67006908 | Screw (Replaces: 400022-1) |
|
Immediately | $ 7.16 | ||||
| 18 | 65224-9 | Cover, Coil |
|
- | |||||
| 19 | 26527-5 | Drain Tube |
|
- | |||||
| 20 | 52526-1 | Grommet |
|
- | |||||
| 21 | 53727-1 | Retainer, Air Tunnel |
|
- | |||||
| 22 | 57411-1 | Retainer |
|
- | |||||
| 23 | 53743-34 | Frzr Shelf |
|
- | |||||
| 24 | 63079-3 | Glide |
|
- | |||||
| 24 | WP210720 | Rivet (Replaces: 26397-9) |
|
$ 12.14 | |||||
| 24 | 21697-14 | Stud |
|
- | |||||
| 25 | 63079-2 | Glide |
|
- | |||||
| 26 | 53752-32 | Trim |
|
- | |||||
| 27 | 53743-7 | Frzr Shelf |
|
- | |||||
| 28 | 62438-31 | Shelf, Glass |
|
- | |||||
| 29 | 59746-24 | Trim |
|
- | |||||
| 30 | 65066-2 | Door |
|
- | |||||
| 31 | 65281-15 | Insert |
|
- | |||||
| 32 | 59330-11 | Drawer |
|
- | |||||
| 33 | 59317-99 | Handle |
|
- | |||||
| 34 | 53821-1 | Nut |
|
- | |||||
| 35 | 59090-1 | Bushing |
|
- | |||||
| 36 | ES18809 | Switch (Replaces: 56432-1) |
|
$ 11.30 | |||||
| 37 | 52197-1 | Guard |
|
- | |||||
| 38 | W11679940 | Light Bulb (25w,125v) (Replaces: 2386-1) |
|
Immediately | $ 10.17 | ||||
| 38 | 57418-1 | Clip,food Liner Mount.(slides) |
|
- | |||||
| 38 | 53914-2 | Stud |
|
- |
