01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment


06 - Water & Ice Dispenser

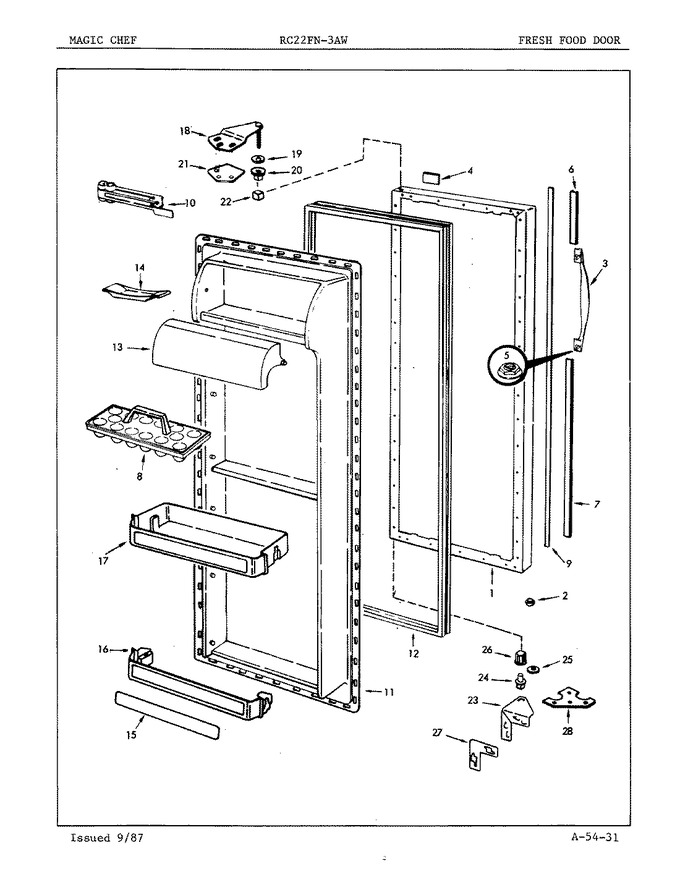

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62391-15-AM		Panel, Outer Door		Appelez-nous	-
2	RA95060-1		Insulation Kit		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	63686-3		Handle		Appelez-nous	-
4	65211-2		Retainer, Escutcheon		Appelez-nous	-
4	65791-1		Nameplate		Appelez-nous	-
5	434003-506		Fastener		Appelez-nous	-
6	65774-7		Handle Ext		Appelez-nous	-
7	65774-8		Handle Ext		Appelez-nous	-
8	60066-1		Tray, Egg		Appelez-nous	-
9	65773-13		Trim		Appelez-nous	-
10	52614-1		Bracket, Closer		Appelez-nous	-
10	54485-1		Closer, Door		Appelez-nous	-
10	52613-1		Insulation, Closer		Appelez-nous	-
11	65275-5		Screw		Appelez-nous	-
11	65943-7		Liner, Door		Appelez-nous	-
12	53712-2		Gasket		Appelez-nous	-
13	66184-426		Door, Dairy		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	65571-9		Insert		Appelez-nous	-
16	65781-6		Shelf Front		Appelez-nous	-
17	65782-6		Shelf, Pick-off		Appelez-nous	-
18	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
19	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
20	66036-2		Bushing, Upper Hinge		Appelez-nous	-
21	65031-1		Shim, Upper Hinge		Appelez-nous	-
22	55990-1		Seal Sleeve		Appelez-nous	-
23	60630-12		Hinge, Lower		Appelez-nous	-
23	403062-5		Screw		Appelez-nous	-
24	53672-1		Pin, Lower Hinge		Appelez-nous	-
25	54233-1		Washer				$ 7.71
26	66034-1		Bushing, Lower Hinge				$ 19.76
27	60626-1		Shim, Lower Hinge		Appelez-nous	-
28	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
