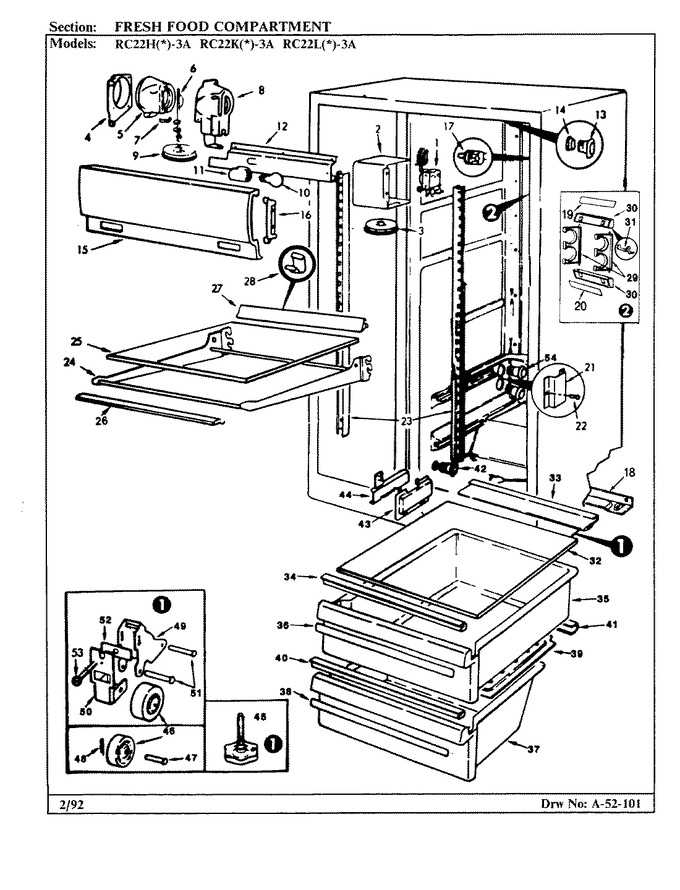

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	401012-1		Screw, Control Mounting		Appelez-nous	-
1	VC1RF		Control, Temperature   (Replaces: 52881-23)			Immediately	$ 35.95
2	53682-10		Housing, Temperature Control		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
3	29893-5		Knob		Appelez-nous	-
4	53835-2		Orifice, Freezer Control		Appelez-nous	-
5	58767-1		Insulation, Housing		Appelez-nous	-
6	52587-2		Damper		Appelez-nous	-
7	52648-1		Spring, Baffle		Appelez-nous	-
8	67354-1		Housing, Frz. Control		Appelez-nous	-
9	29893-6		Knob		Appelez-nous	-
10	W10887190		Bulb, Light   (Replaces: 55771)			Immediately	$ 16.48
11	29814-2		Receptacle, Light		Appelez-nous	-
12	59740-1		Housing		Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
13	57410-1		Tunnel		Appelez-nous	-
14	57411-1		Retainer		Appelez-nous	-
15	65578-4		Shield, Light		Appelez-nous	-
16	53686-2		Support		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
17	56432-2		Switch		Appelez-nous	-
18	67255-2		Support Rail Rear		Appelez-nous	-
18	3400518		Screw   (Replaces: 65275-42)				$ 11.68
19	65753-3		Insert		Appelez-nous	-
20	65753-7		Insert		Appelez-nous	-
21	62128-1		Air Deflector		Appelez-nous	-
22	28013-2		Rivet, Air Tunnel		Appelez-nous	-
23	400037-28		Screw		Appelez-nous	-
23	58381-4		Rail, Shelf Support		Appelez-nous	-
24	65618-2		Frame, Shelf		Appelez-nous	-
25	68139-8		Glass Shelf		Appelez-nous	-
26	68171-2		Trim, Cantilever Shelf		Appelez-nous	-
27	65276-14		Trim		Appelez-nous	-
28	66333-1		Clip, Shelf Trim		Appelez-nous	-
29	56519-4		Rack, Wine		Appelez-nous	-
30	65689-1		Support, Wine Rack		Appelez-nous	-
31	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
31	58057-1		Spring, Wine Rack		Appelez-nous	-
32	68139-12		Glass Shelf		Appelez-nous	-
33	66092-2		Crisper Seal		Appelez-nous	-
34	65593-2		Seal		Appelez-nous	-
35	66519-2		Pan, Crisper		Appelez-nous	-
36	68124-34		Insert		Appelez-nous	-
37	66521-1		Pan, Meat		Appelez-nous	-
38	68124-34		Insert		Appelez-nous	-
39	65608-4		Cover, Meat Pan		Appelez-nous	-
40	65648-2		Seal, Meat Pan (front)		Appelez-nous	-
41	65649-2		Seal, Meat Pan (rear)		Appelez-nous	-
42	53726-2		Tunnel, Air (meat)		Appelez-nous	-
42	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
43	65737-1		Control Housing		Appelez-nous	-
43	56686-4		Clip		Appelez-nous	-
44	65736-1		Slide Control, (meat)		Appelez-nous	-
45	W11117769		Leg, Leveling   (Replaces: 68664-1)			Immediately	$ 16.61
46	29834-2		Wheel		Appelez-nous	-
47	62580-1		Pivot Pin, Wheel (rear)		Appelez-nous	-
48	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
49	62794-1		Bracket, Wheel		Appelez-nous	-
49	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
50	62795-1		Faceplate Bracket		Appelez-nous	-
51	64965-1		Pin, Wheel		Appelez-nous	-
52	59101-1		Tapping Plate, Wheel		Appelez-nous	-
53	56487-1		Screw, Wheel Adjustment		Appelez-nous	-
54	53726-1		Air Tunnel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
