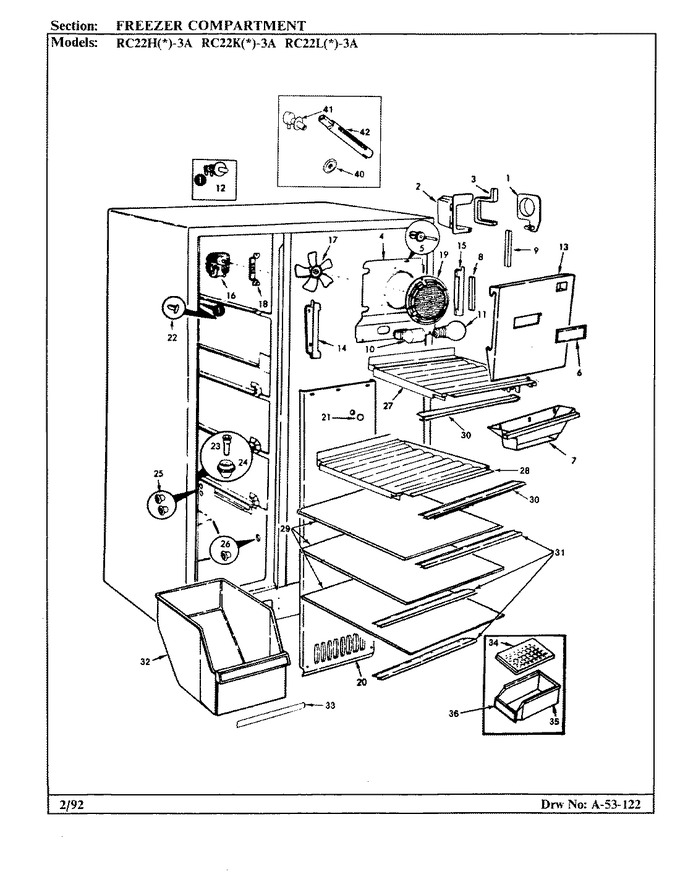

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54423-1 | Orifice |
|
- | |||||
| 1 | 68171-11 | Trim |
|
- | |||||
| 2 | 53837-1 | Shield |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 3 | 52077-10 | Seal |
|
- | |||||
| 4 | 53933-1 | Plug |
|
- | |||||
| 4 | 68247-2 | Cover |
|
- | |||||
| 5 | 59920-1 | Stud, Mounting Coil Cover |
|
- | |||||
| 6 | 68325-2 | Insert |
|
- | |||||
| 7 | 65693-1 | Air Duct Asm |
|
- | |||||
| 8 | 68946-4 | Seal |
|
- | |||||
| 9 | 66325-33 | Seal |
|
- | |||||
| 10 | 29814-2 | Receptacle, Light |
|
- | |||||
| 11 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 12 | 68916-1 | Light Switch |
|
- | |||||
| 13 | 68611-3 | Shield |
|
- | |||||
| 14 | 53687-2 | Support |
|
- | |||||
| 15 | 54424-2 | Support |
|
- | |||||
| 16 | 56488-4 | Motor |
|
- | |||||
| 17 | 52120-3 | Blade, Evaporator Fan |
|
- | |||||
| 18 | 64856-2 | Bracket, Fan Motor |
|
- | |||||
| 18 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 19 | 68253-1 | Grid, Fan |
|
- | |||||
| 19 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 20 | 67562-1 | Coil Cover, Gasket |
|
- | |||||
| 20 | 67335-7 | Cover, Coil (lower) |
|
- | |||||
| 21 | 495015-900 | Plug Button |
|
- | |||||
| 22 | 67557-1 | Plug Button |
|
- | |||||
| 23 | 22451-7 | Drain Tube |
|
- | |||||
| 24 | 52526-1 | Grommet |
|
- | |||||
| 25 | 53727-1 | Retainer, Air Tunnel |
|
- | |||||
| 26 | 53727-1 | Retainer, Air Tunnel |
|
- | |||||
| 27 | 66603-13 | Shelf, Frz |
|
- | |||||
| 29 | 66603-23 | Shelf, Frz |
|
- | |||||
| 31 | 68171-11 | Trim |
|
- | |||||
| 32 | 66636-50 | Drawer, Frz. |
|
- | |||||
| 33 | 68124-7 | Insert |
|
- | |||||
| 34 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) |
|
$ 18.23 | |||||
| 35 | 66592-1 | Pan |
|
- | |||||
| 36 | 68134-3 | Insert |
|
- | |||||
| 40 | 68187-1 | Cap, Connector |
|
- | |||||
| 41 | 68396-1 | Grommet |
|
- | |||||
| 42 | 68304-2 | Extension,grommet To Fill Tube |
|
- |
