SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Shelves & Accessories


08 - Unit Compartment & System

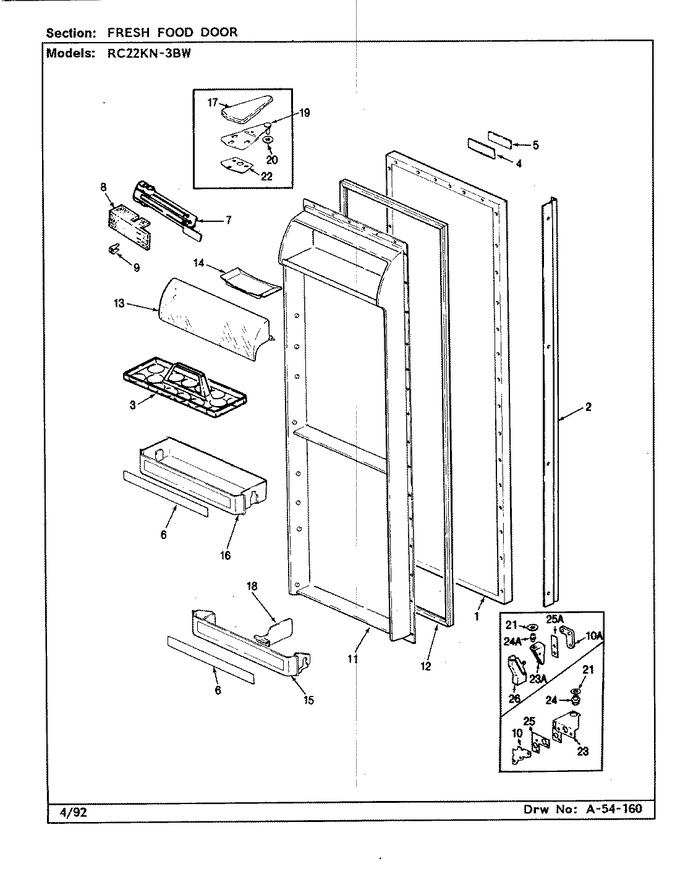

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	68459-2-WW		Panel, F.f. Door (wht)		Appelez-nous	-
2	68658-5		Handle		Appelez-nous	-
2	65275-37		Screw, Handle		Appelez-nous	-
2	66799-1		Achor, Screw		Appelez-nous	-
3	60066-1		Tray, Egg		Appelez-nous	-
4	66981-1		Bezel		Appelez-nous	-
5	66982-14		Nameplate (blk)		Appelez-nous	-
6	68121-67		Insert, Door Front		Appelez-nous	-
6	68121-68		Insert, Shelf		Appelez-nous	-
7	54485-1		Closer, Door		Appelez-nous	-
7	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
8	52613-1		Insulation, Closer		Appelez-nous	-
9	52614-1		Bracket, Closer		Appelez-nous	-
10	65964-2		Tapping Plate		Appelez-nous	-
11	65275-5		Screw		Appelez-nous	-
11	65943-7		Liner, Door		Appelez-nous	-
12	53712-16		Gasket		Appelez-nous	-
13	66184-394		Door, Dairy		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	65781-6		Shelf Front		Appelez-nous	-
16	65782-6		Shelf, Pick-off		Appelez-nous	-
17	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
18	66645-6		Organizer Package		Appelez-nous	-
19	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
19	53709-22		Hinge, Upper		Appelez-nous	-
20	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
21	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
22	65031-1		Shim, Upper Hinge		Appelez-nous	-
23	403100-1		Screw		Appelez-nous	-
23	67714-10		Hinge, Lower		Appelez-nous	-
24	68788-1		Hinge Pin		Appelez-nous	-
25	60626-1		Shim, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
