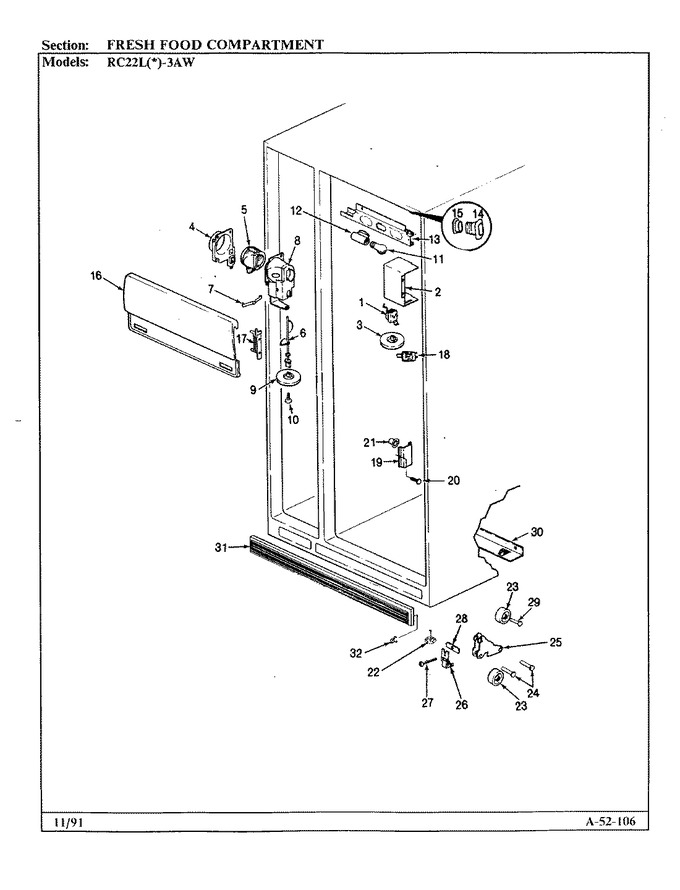

RC22LA-3AW (BOM: BS31C) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	401012-1	Screw, Control Mounting	Appelez-nous	-
1	VC1RF	Control, Temperature (Replaces: 52881-23)		Immediately	$ 35.95
1	67692-1	Insulation, Control	Appelez-nous	-
2	53682-10	Housing, Temperature Control	Appelez-nous	-
2	WP489478	Screw (Replaces: 400017-1)			$ 6.98
3	29893-7	Knob, Temp. Control	Appelez-nous	-
4	53835-2	Orifice, Freezer Control	Appelez-nous	-
5	58767-1	Insulation, Housing	Appelez-nous	-
6	68613-1	Baffle	Appelez-nous	-
7	52648-1	Spring, Baffle	Appelez-nous	-
8	400027-1	Screw	Appelez-nous	-
8	67354-1	Housing, Frz. Control	Appelez-nous	-
9	29893-12	Knob	Appelez-nous	-
10	400001-1	Screw	Appelez-nous	-
11	W11679940	Bulb, Light (Replaces: 31956-1)		Immediately	$ 10.17
12	29814-2	Receptacle, Light	Appelez-nous	-
13	WP489478	Screw (Replaces: 400017-1)			$ 6.98
13	69081-2	Housing	Appelez-nous	-
14	57410-1	Tunnel	Appelez-nous	-
15	57411-1	Retainer	Appelez-nous	-
16	65578-30	Shield, Light	Appelez-nous	-
17	WP489478	Screw (Replaces: 400017-1)			$ 6.98
17	53686-2	Support	Appelez-nous	-
18	68916-1	Light Switch	Appelez-nous	-
19	62128-1	Air Deflector	Appelez-nous	-
20	28013-2	Rivet, Air Tunnel	Appelez-nous	-
21	67684-1	Tunnel, Air Return	Appelez-nous	-
22	W11117769	Leg, Leveling (Replaces: 6012-8)		Immediately	$ 16.61
23	29834-2	Wheel	Appelez-nous	-
24	64965-1	Pin, Wheel	Appelez-nous	-
25	62794-1	Bracket, Wheel	Appelez-nous	-
25	WP489478	Screw (Replaces: 400017-1)			$ 6.98
26	62795-1	Faceplate Bracket	Appelez-nous	-
27	56487-2	Screw, Wheel Adjustment	Appelez-nous	-
28	59101-1	Tapping Plate, Wheel	Appelez-nous	-
29	64965-3	Pin, Wheel (rear)	Appelez-nous	-
30	67255-2	Support Rail Rear	Appelez-nous	-
30	3400518	Screw (Replaces: 65275-42)			$ 11.68
31	56478-26	Kickplate	Appelez-nous	-
32	WP489478	Screw, Kickplate Mtg. (Replaces: 9986-101)			$ 6.98
32	52854-3	Clip, Kickplate	Appelez-nous	-
