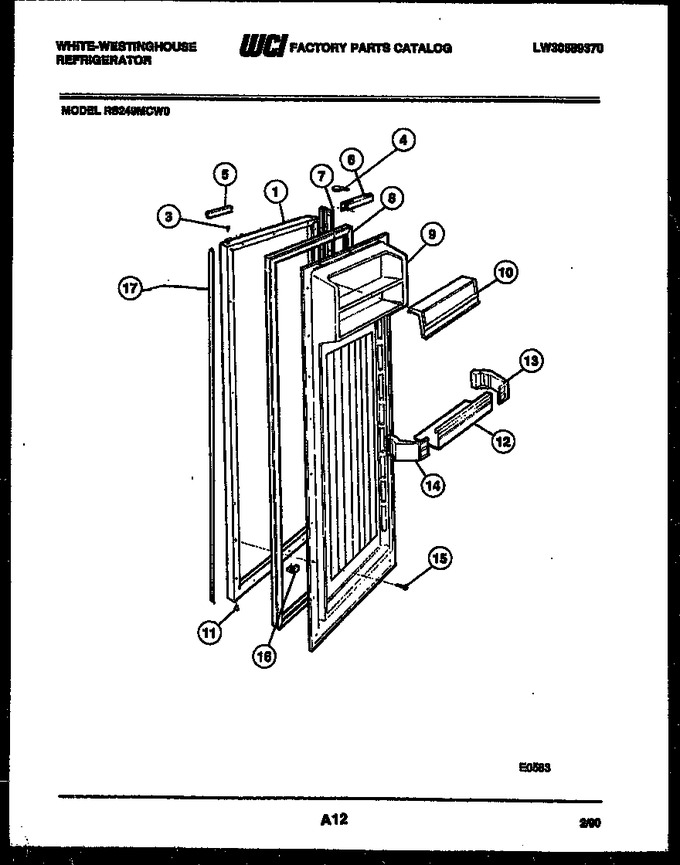

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916540		Refr Door-almd		Appelez-nous	-
3	5303001022		Bearing-upper Hinge		Appelez-nous	-
4	5300177142		Handle End-top		Appelez-nous	-
5	3206159		Nameplate		Appelez-nous	-
6	5303200272		Door Closer		Appelez-nous	-
7	5303207069		Handle-refrigerator		Appelez-nous	-
8	5303205400		Gasket-refrigerator				$ 200.13
9	G179992-01		Panel-inner Door		Appelez-nous	-
10	5303207066		Dairy Door (2)		Appelez-nous	-
11	5308012007		Bearing-lower Hinge		Appelez-nous	-
12	5303206692		Door Shelf (4)		Appelez-nous	-
13	5303206680		Support-rh (4)				$ 59.06
14	5303206681		Support-lh (4)				$ 64.84
15	218843801		Screw   (Replaces: 5303001001)				$ 14.41
16	5308000790		Bumper, Light Switch				$ 3.86
17	5303205834		Trim-door		Appelez-nous	-
*25772	5303007739		Insulation, Bulk		Appelez-nous	-
16A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5315230801		Door Plug-bottom (non-illustrated)		Appelez-nous	-
4A	5300179270		Trim-handle End-top (non-illustrated)		Appelez-nous	-
4B	5300177143		Handle End-bottom (non-illustrated)		Appelez-nous	-
4C	5300179271		Trim-handle End-btm (non-illustrated)		Appelez-nous	-
4D	5300177144		Clip-door Handle (non-illustrated)		Appelez-nous	-
6A	5306588927		Screw-closer (non-illustrated)		Appelez-nous	-
7A	5308011745		Screw				$ 10.38

    View Diagram in Separate Window       Print Part List
