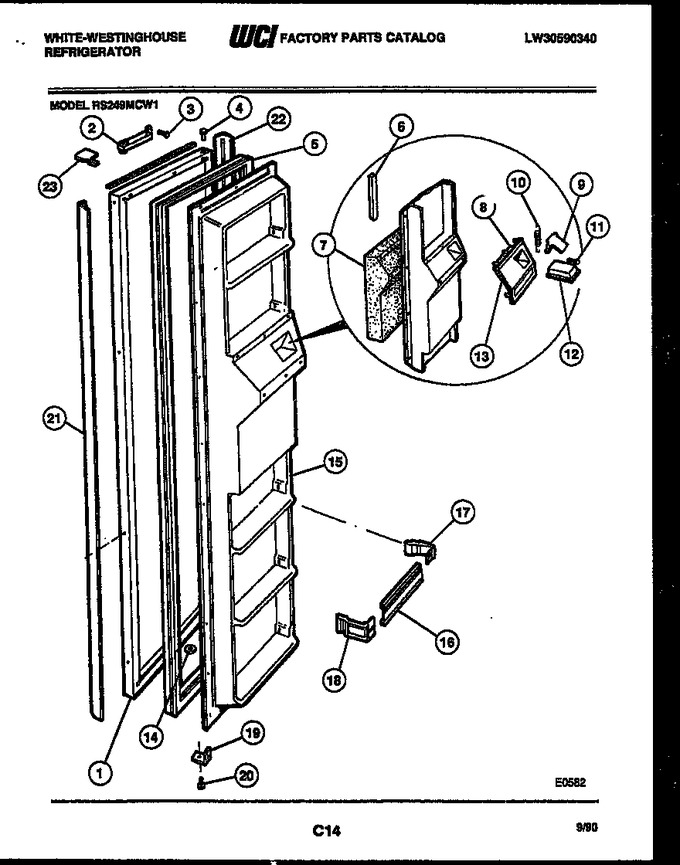

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916544 | Freezer Door-coffee |
|
- | |||||
| 2 | 5303200272 | Door Closer |
|
- | |||||
| 3 | 53001020 | Screw - Closer Mtg (2) |
|
- | |||||
| 4 | 5303001022 | Bearing-upper Hinge |
|
- | |||||
| 5 | 5303208398 | Gasket-freezer Door |
|
- | |||||
| 6 | 5303001046 | Shield-wiring |
|
- | |||||
| 7 | 5308017045 | Insulation-housing |
|
- | |||||
| 8 | 5303001048 | Pin-ice Door Hinge |
|
- | |||||
| 9 | 5303205848 | Flipper-ice Door |
|
- | |||||
| 10 | 5308010300 | Spring-flipper Retainer |
|
$ 36.91 | |||||
| 11 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 12 | 5303211300 | Ice Door |
|
- | |||||
| 13 | 5303205851 | Trim Cover - Door Pnl |
|
- | |||||
| 14 | 5308010308 | Bushing-lower Hinge |
|
- | |||||
| 15 | 5318062901 | Panel-inner Door |
|
- | |||||
| 16 | 5303208841 | Door Rack (5) |
|
- | |||||
| 17 | 5303204848 | Support-rh (5) |
|
$ 35.86 | |||||
| 18 | 5303204849 | Support-lh (5) |
|
$ 21.11 | |||||
| 19 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 20 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 21 | 5303207069 | Handle-freezer Door |
|
- | |||||
| 22 | 5303205834 | Trim-door |
|
- | |||||
| 23 | 5300177142 | Handle End-top |
|
- | |||||
| *35462 | 5303007739 | Insulation, Bulk |
|
- | |||||
| *35462 | 5303208843 | Label-frozen Food Storage |
|
- | |||||
| *35462 | 5300179270 | Trim-handle End-top |
|
- | |||||
| *35462 | 5300177143 | Handle End-bottom |
|
- | |||||
| *35462 | 5300179271 | Trim-handle End-bottom |
|
- | |||||
| *35462 | 5300177144 | Clips-door Handle |
|
- | |||||
| 13A | 5308017047 | Nut-self Threading (6) (non-illustrated) |
|
- | |||||
| 15A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 1A | 5315230801 | Door Plug-bottom (non-illustrated) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
