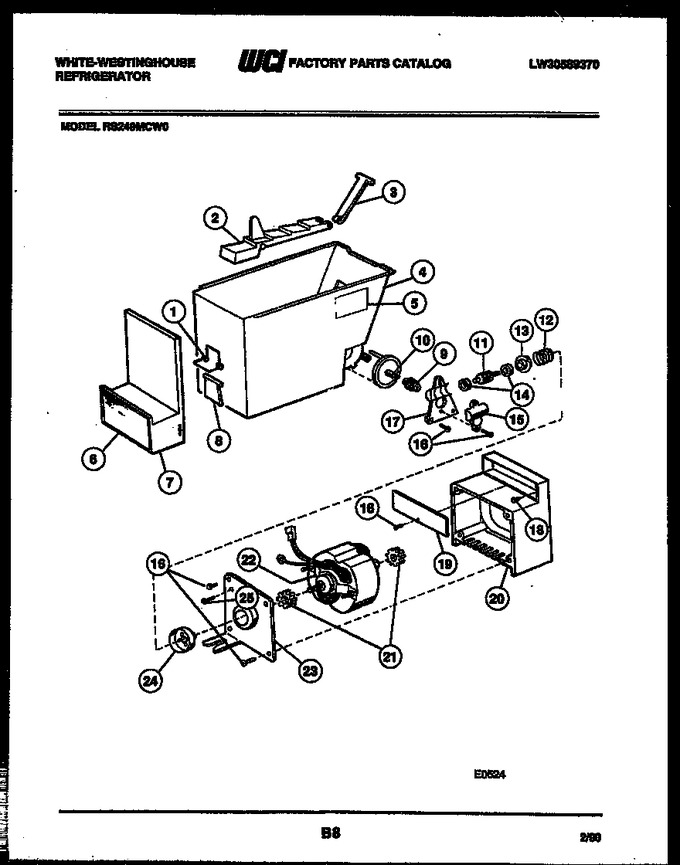

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300184853		Spring-ice Door		Appelez-nous	-
2	5301123547		Ram-ice Dispenser		Appelez-nous	-
3	5317769703		Deflector-ice Dispenser		Appelez-nous	-
4	5301138760		Container-ice		Appelez-nous	-
5	5303016895		Label-ice Dispenser		Appelez-nous	-
6	5303208862		Label-ice Container		Appelez-nous	-
7	5303015828		Front-ice Container		Appelez-nous	-
8	5303017843		Door-ice Container		Appelez-nous	-
9	5301123566		Worm Gear-drive		Appelez-nous	-
10	5301123568		Disc-drive		Appelez-nous	-
11	5301124161		Worm-drive		Appelez-nous	-
12	5301123767		Spring-drive		Appelez-nous	-
13	5308017407		Coupling-ice Dispenser Container		Appelez-nous	-
14	5301123508		Bearing-rear (2)		Appelez-nous	-
15	5301123570		Cover-drive Hsg		Appelez-nous	-
16	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
17	5300174408		Housing-ice Disp Drive		Appelez-nous	-
18	5308010253		Screw (2)		Appelez-nous	-
19	5308010346		Cover-motor Hsg		Appelez-nous	-
20	5308010343		Housing-motor		Appelez-nous	-
21	5301123769		Mount-motor (2)		Appelez-nous	-
22	5308017049		Motor-ice Dispenser		Appelez-nous	-
23	5303001106		Bracket-motor		Appelez-nous	-
24	5301123771		Coupling-motor		Appelez-nous	-
25	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*25802	3001247		Bracket, Motor Mtg.		Appelez-nous	-
