Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308017048 Tube - Water Inlet & Pilot Assembly Appelez-nous -
2 5303001066 Grommet-water Tube Appelez-nous -
3 5308015588 Heater-door Housing Appelez-nous -
4 5303211294 Housing-i/w Door Appelez-nous -
5 5308010326 Clamp-water Tube Appelez-nous -
6 5303001073 Screw (4) Appelez-nous -
7 5303001078 Switch-solenoid (2) Appelez-nous -
8 5303204878 Plate-switch Mtg Appelez-nous -
9 5303001083 Screw (4) Appelez-nous -
10 5303001072 Spring-water Actuator Appelez-nous -
11 5303001077 Actuator-water Appelez-nous -
12 5303205889 Buttons-water & Ice (2) Appelez-nous -
13 5302832214 Clip - Water Actuator Appelez-nous -
14 5303208251 Label-front Panel Appelez-nous -
15 5318264301 Front Panel Appelez-nous -
16 5300187180 Bulb-light Appelez-nous -
17 5303001081 Screw-adjusting Appelez-nous -
18 5300190359 Actuator And Cup Appelez-nous -
19 5303205853 Frame - Freezer Door Housing Appelez-nous -
20 5308010330 Screw - Clip Mounting (2) Appelez-nous -
21 5300179966 Clip - Trim Mounting (2) Appelez-nous -
22 5308015598 Label-fill Pads, (2) Appelez-nous -
23 5303208845 Grid-water Spill Appelez-nous -
24 5318000402 Skirt-ice Deflector Appelez-nous -
25 5308017047 Nut-self Thread (12) Appelez-nous -
26 5303001082 Wiring Harness-freezer Door Appelez-nous -
27 5303001047 Plug-harness Bottom Appelez-nous -
28 5303001076 Lampholder Appelez-nous -
*35493 5318653301 Diode Kit Appelez-nous -
*35493 5303001074 Anchor-stud (2) Appelez-nous -
12A 3001155 Label-buttons (2) (non-illustrated) Appelez-nous -
19A 5303211298 Label - Freezer Door Housing Frame - Coffee (non-illustrted) Appelez-nous -
19A 5303211295 Label - Freezer Door Housing Frame - White (non-illustrated) Appelez-nous -
19A 5303211296 Label - Freezer Door Housing Frame - Avocado (non-illustted) Appelez-nous -
19A 5303211297 Label - Freezer Door Housing Frame - Wheat (non-illustrated) Appelez-nous -
19A 5303211299 Label - Freezer Door Housing Frame - Almond (non-illustrted) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

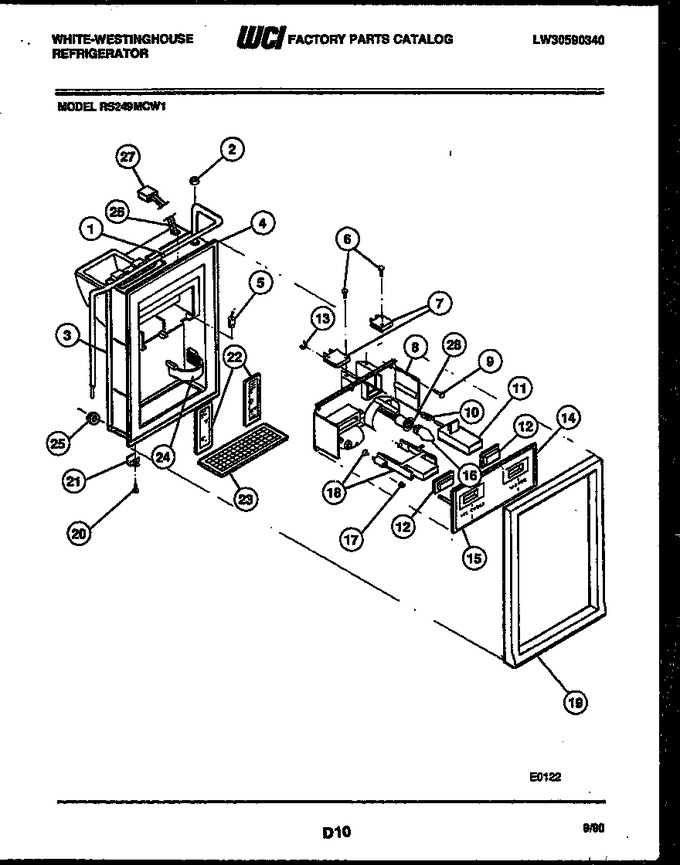

Diagram for RS249MCV1
