02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Shelves And Supports


08 - Refrigerator Control Assembly, Damp


09 - System And Automatic Defrost Parts


10 - System And Automatic Defrost Parts


11 - Ice Door, Dispenser And Water Tank


12 - Ice Dispenser


13 - Ice Maker And Installation Parts


14 - Ice Maker And Installation Parts

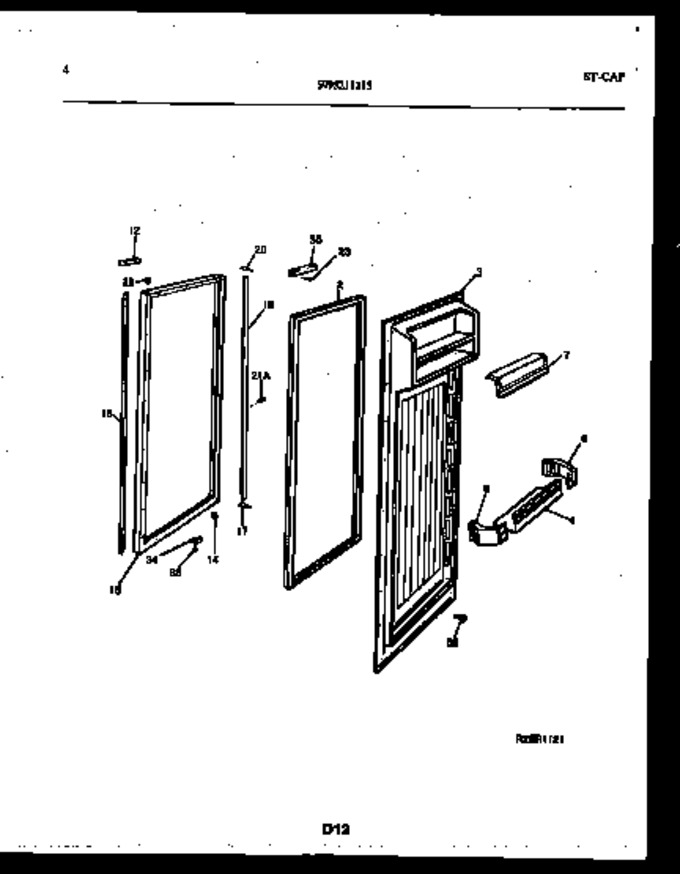

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303205400		Gasket-refr Door, Magnetic				$ 200.13
3	5303279524		Panel-inner Door, Refr		Appelez-nous	-
4	5303206692		Shelf-door, (4)		Appelez-nous	-
5	5303206680		Support-door Shelf, Rh, (4)				$ 59.06
6	5303206681		Support-door Shelf, Lh, (4)				$ 64.84
7	5303207066		Door-dairy, (2)		Appelez-nous	-
12	3206159		Nameplate Assy		Appelez-nous	-
14	5315230801		Plug-button, Refr/fzr Door		Appelez-nous	-
15	5303916538		Panel-refr Door, Wheat		Appelez-nous	-
16	5303275365		Trim-door		Appelez-nous	-
17	5300177143		Handle End		Appelez-nous	-
18	5303279715		Handle-door, Full-length, W/end Caps		Appelez-nous	-
20	5300177142		Handle End		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
22	5303001022		Bearing-hinge Upper		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
34	5308000790		Bumper, Light Switch				$ 3.86
35	5303200272		Closer-door		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*55072	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
17A	5300179271		Trim-handle End (non-illustrated)		Appelez-nous	-
18A	5300177144		Clip-door Handle (non-illustrated)		Appelez-nous	-
20A	5300179270		Trim-handle End (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
