Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 G185970 Label-ice Container Appelez-nous -
2 G174416-06 Front-ice Container Appelez-nous -
3 G174407-01 Door-ice Container Appelez-nous -
4 G184853 Spring, Door Appelez-nous -
5 G177213-04 Container-ice Appelez-nous -
6 G174413-01 Ram-ice Dispenser Appelez-nous -
7 G177697-01 Deflector-ice Dispenser Appelez-nous -
8 G177694 Disc, Ice Ram Drive Appelez-nous -
9 G174702 Gear, Ice Ram Drive Appelez-nous -
10 G177695 Bearing (2) Appelez-nous -
11 G189278 Coupling-ice Dispenser Appelez-nous -
12 G174701 Spring, Motor Drive Appelez-nous -
13 G174406 Gear, Ice Ram Drive Appelez-nous -
14 G174412 Cover, Housing Appelez-nous -
15 G177687 Screw, Housing Appelez-nous -
16 G174408 Housing, Ice Ram Drive Appelez-nous -
17 G175019 Housing, Motor Appelez-nous -
18 G177710 Cover, Housing Appelez-nous -
19 G177711 Mount, Ice Dispenser Motor (2) Appelez-nous -
20 3001111 Motor-ice Ram Appelez-nous -
21 G174403 Bracket, Motor Appelez-nous -
22 G174409 Coupling, Ice Dispenser Motor Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

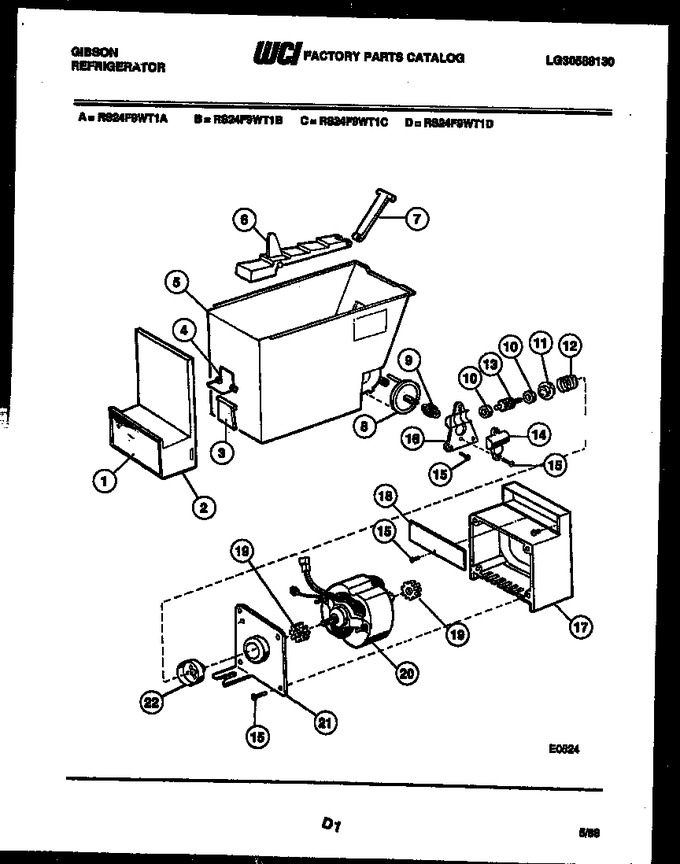

Diagram for RS24F9WT1B
