01 - Tray, Grease Shield, Cabinet,


02 - Door


03 - Antennas, Blower, Ducts,

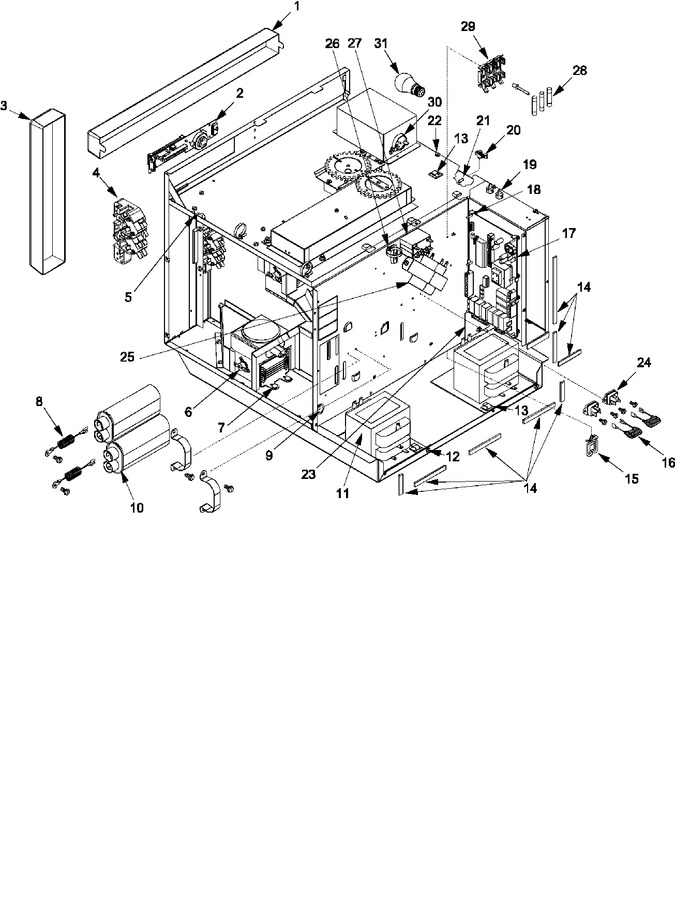

04 - Electrical Components


05 - Supplemental Information


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	M0231717		Screw, Tf		Appelez-nous	-
001	R0130108		Touch Panel(top)		Appelez-nous	-
002	12502401		Board,display Xxx		Appelez-nous	-
002	M0234114		Screw		Appelez-nous	-
003	M0231717		Screw, Tf		Appelez-nous	-
003	R0130109		Touch Panel(side)				$ 306.74
004	12360506		Switch, Interlock		Appelez-nous	-
004	59001114		Switch, Interlock		Appelez-nous	-
004	M0216517		Screw		Appelez-nous	-
005	A3293505		Bushing-snap		Appelez-nous	-
006	B5684124		Cutout-thermal Magnetron		Appelez-nous	-
006	M0229916		Screw T.c		Appelez-nous	-
007	10489402		Magnetron-t		Appelez-nous	-
008	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
008	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
009	59001128		Bushing, Snap		Appelez-nous	-
010	A4055405		Strap, Capacitor		Appelez-nous	-
010	59001651		Capacitor-.82   (Replaces: D8547941)				$ 43.15
010	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
011	10788612		Transformer-hv		Appelez-nous	-
012	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
013	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
014	A3030301		Gasket (inch)		Appelez-nous	-
015	B5667304		Wire Clip		Appelez-nous	-
016	10172901Q		Snubber Assembly		Appelez-nous	-
017	12502803		Net-board,hv		Appelez-nous	-
017	59001002		Board,hv		Appelez-nous	-
018	M0590602		Support P-c Bd A		Appelez-nous	-
019	M0325401		Bushing,terminal		Appelez-nous	-
020	WP488234		Screw   (Replaces: M0234422)				$ 6.07
020	B5795306		Thermal Cutout		Appelez-nous	-
021	M0308801		Cap, Protective-threaded (red)		Appelez-nous	-
022	M0231617		Screw,tf		Appelez-nous	-
023	YM0200316		Screw		Appelez-nous	-
023	10847601		Plate, Partition		Appelez-nous	-
024	D7681501		Triac				$ 44.05
024	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
025	C8901509		Transformer-auto		Appelez-nous	-
025	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
026	M0322202		Tie Wire		Appelez-nous	-
027	12492202		Relay		Appelez-nous	-
028	WPM0805102		Fuse 15 Amp   (Replaces: M0805102)				$ 21.25
029	12136502		Block-3 Pole Fuse		Appelez-nous	-
029	A4539601		Pop Rivet		Appelez-nous	-
030	B8371401		Receptacle, Lamp		Appelez-nous	-
030	M0231717		Screw, Tf		Appelez-nous	-
031	8009		Lamp 41w   (Replaces: 10664502)			Immediately	$ 16.80

    View Diagram in Separate Window       Print Part List
