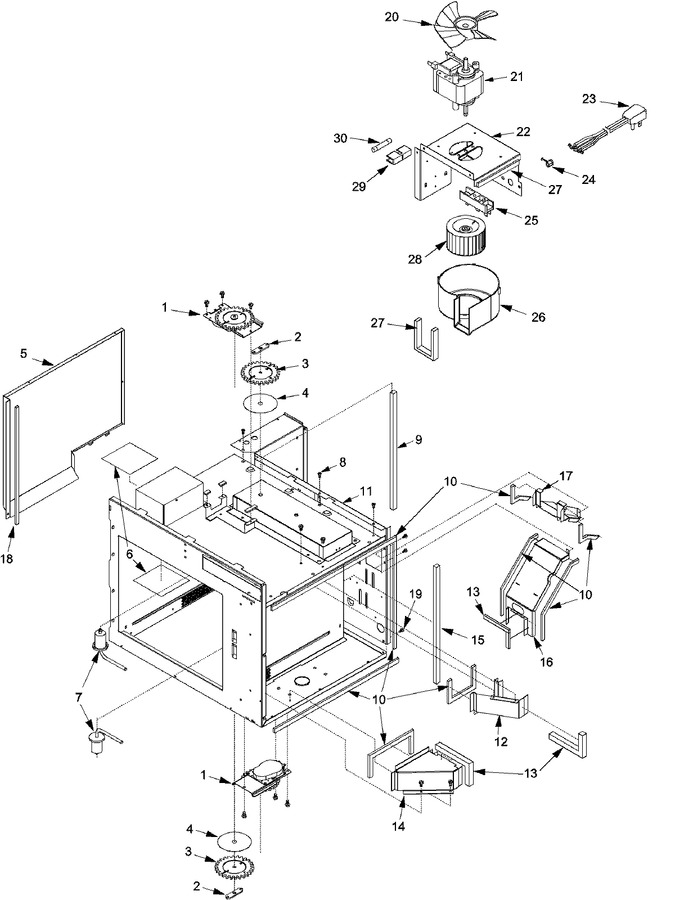

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0231717		Screw, Tf		Appelez-nous	-
1	R0130263		Motor-antenna Stirrer (230v)				$ 87.98
2	12570201		Retainer,gear Shaft		Appelez-nous	-
3	12570101		Gear,spur		Appelez-nous	-
4	10903002		Washer, Spur Gear				$ 5.44
5	10781901		Duct, Exhaust		Appelez-nous	-
6	B8367701		Window, Oven Light		Appelez-nous	-
7	R0130262		Antenna (stirrer)				$ 79.65
8	WPW10001160		Screw   (Replaces: M0200316)				$ 8.86
9	10966601		Gasket, Neoprene		Appelez-nous	-
10	A3030330		Gasket,per Ft		Appelez-nous	-
11	59001129		Panel, Partition		Appelez-nous	-
12	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
12	R0156984		Top Exhaust Duct-w/gasket		Appelez-nous	-
13	A3030303		Gasket (per Foot)		Appelez-nous	-
14	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
14	R0156985		Bottom Exhaust Duct-w/gasket		Appelez-nous	-
15	A3030311		Gasket-per Inch		Appelez-nous	-
16	R0156987		Bottom Divider Duct-w/gasket		Appelez-nous	-
17	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
17	R0156986		Rear Divider Duct-w/gasket		Appelez-nous	-
18	A3030301		Gasket (inch)		Appelez-nous	-
19	5078-CC		Screw		Appelez-nous	-
20	B5706704		Fan Blade				$ 8.23
21	12138106		Motor,blower		Appelez-nous	-
22	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
22	12567701		Bracket,blower		Appelez-nous	-
23	R0131016		Power Cord Kit		Appelez-nous	-
24	M0370003		Strain Relief		Appelez-nous	-
25	B5677203		Terminal Block		Appelez-nous	-
25	M0234117		Screw		Appelez-nous	-
26	12552001		Scroll,blower				$ 13.02
26	M0216517		Screw		Appelez-nous	-
27	A3030303		Gasket (per Foot)		Appelez-nous	-
28	C3670809		Wheel, Blower				$ 33.54
29	10091101		Fuse Holder		Appelez-nous	-
30	M0805205		Fuse- 30a				$ 10.08
